6208-2RS-NR-C3 - Datasheet
MBA
Category Information
Bearings - Single Row Ball - with Snap Ring - Standard - Chrome SteelChrome Steel Standard with Snap Ring Single Row Ball Bearings. Chrome Steel Bearings with a Snap Ring on the OD
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
- Single row radial ball bearings with snap ring.
Product Data

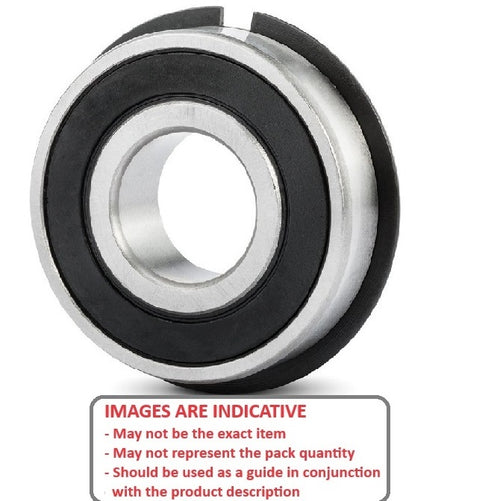

This bearing has a snap ring on the OD

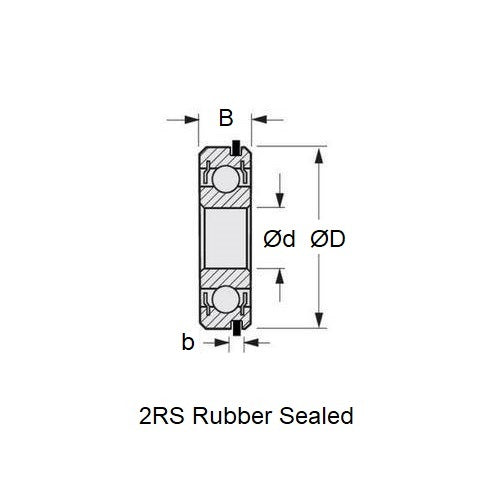

- ID (d)
:
40.000
mm
+ 0.000 / - 0.012
(Equiv. 1.575 in.) - OD (D)
80.000
mm
+ 0.000 / - 0.013
(Equiv. 3.15 in.) - Width (B)
18.000
mm
+ 0.000 / - 0.120
(Equiv. 0.709 in.) - Groove Width (b) 1.900 mm
- Closure Type 2RS
- Bearing Type Radial with Snp Ring
- Snap Ring Thickness 1.700 mm
- Max. Dist. To Groove Edge 3.280 mm
- Material Chrome Steel SAE 52100
- Lubrication Type Grease
- Lubrication Name Standard Unspecified
- Basic Part 6208
- Limiting Speed 5644
- Cage Type Standard
- Static Load Rating KGf 1828
- Dynamic Load Rating KGf 2969
- Radii 1.10 mm
- Inner Shoulder (UI) 52.93mm
- Outer Shoulder (UO) 70.80 mm
- Number of Balls 9
- Clearance C3 (15 to 33)
- Precision Grade Abec 1
- Closure Type 2RS
- Max Temperature 80 Deg. C
