ACE9252RS - Datasheet
ACE
Category Information

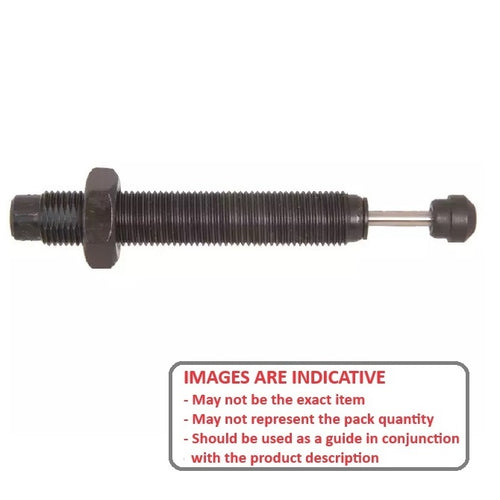

Shock Absorbers - Soft Contact Self-CompensatingSoft Contact Self-Compensating Shock Absorbers. This is the main category in this series
Product Data

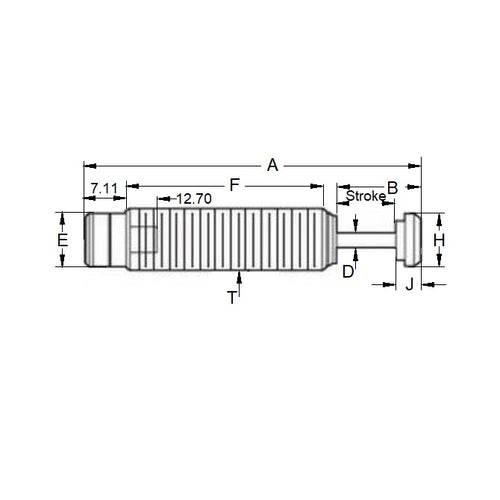

- Stroke
:
40.13
mm
(Equiv. 1.58 in.) - Thread (T) 1-12
- Length (A/F)
188.98 / 129.54
mm
(Equiv. 7.44 in.) - Shaft Diameter (D) 6.35 mm
- Effective Weight Soft Contact 58.97 - 208.65 KG
- Effective Weight Self-Compen 40.82 - 272.16 KG
- Wrench Flat (EE) 22.23 mm
- More Information For more information please contact us.
Product Compliance and Data
Additional Resources
Cross References
- ACE9252
- ACE-9252
