Miniature Bearings Australia
PR-0400-120-2RS-ET-90 - Datasheet
MBA
Category Information

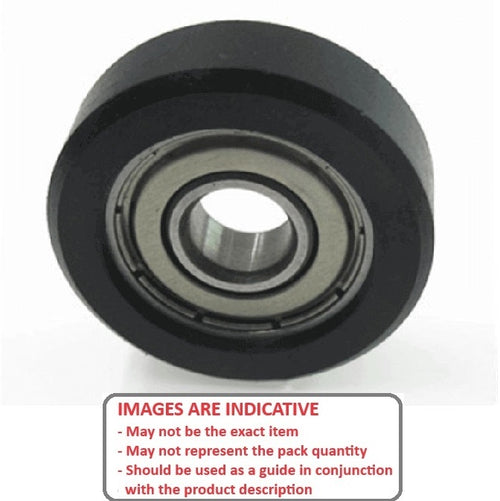

Rollers - Pressure Roller with Bearing - Urethane ODUrethane OD Pressure Roller with Bearing Rollers. Bearings with Urethane Tyre on OD for applications requiring frictional movement.
- For applications including paper and card dispensing and rolling (eg ATM Machines).
Product Data

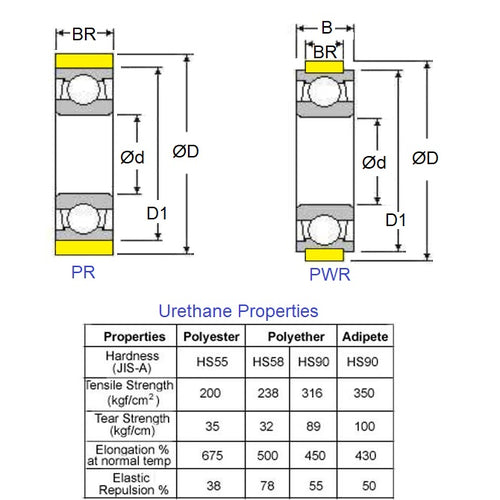

- OD (D)
:
40.00
mm
(Equiv. 1.575 in.) - ID (d)
12.00
mm
(Equiv. 0.472 in.) - Width (B)
8.00
mm
(Equiv. 0.315 in.) - Roller Width (BR) 12.00 mm
- Bearing Outside Diameter (D1) 28.00 mm
- Roller Material 90 Duro (JIS-A) Polyester Based Urethane - Black
- Closures 2RS Rubber Sealed
- Bearing Type Pressure Roller
- Material Chrome Steel SAE 52100
Product Compliance and Data
Additional Resources
Cross References
- PR0400120RSES55
- PR04001202RSES55
