CMB040-40-100M-R70 - Datasheet
MBA
Category Information

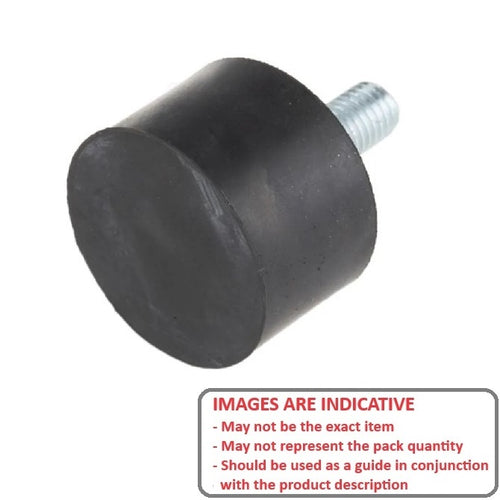

Mounts - Buffer - Male - RoundRound Male Buffer Mounts. Vibration dampening
- An expanded range may be available on special order. Please enquire.
Product Data

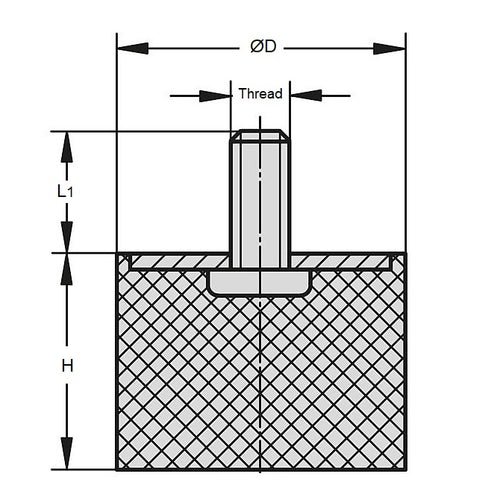

- Nom. Body Diameter (D) : 40.0 mm
- Body Height (H) 40.0 mm
- Thread Size (G) M10x1.5
- Shore Hardness 70
- Thread Length (L1) 25.0 mm
- Compression Load 199 Kg
- Deflection 10.0 mm
- Configuration Male to Blank
- Material Natural Rubber
Product Compliance and Data
Additional Resources
Cross References
- 4040MFB2570
- 4040MFB25-70
