CMB040-40-080M-R45 - Datasheet
MBA
Category Information

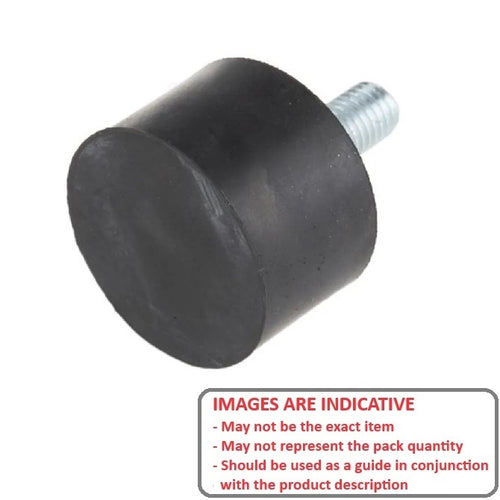

Mounts - Buffer - Male - RoundRound Male Buffer Mounts. Vibration dampening
- An expanded range may be available on special order. Please enquire.
Product Data

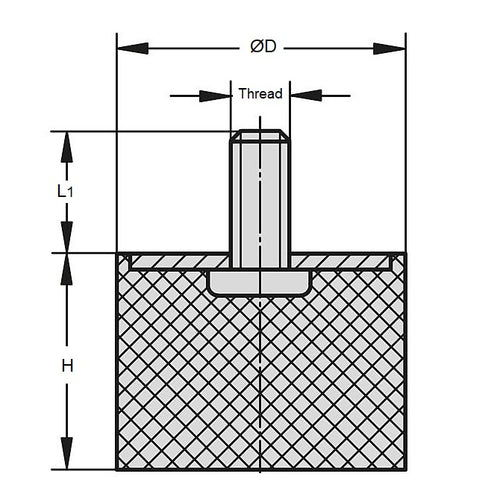

- Nom. Body Diameter (D) : 40.0 mm
- Body Height (H) 40.0 mm
- Thread Size (G) M8x1.25
- Shore Hardness 45
- Thread Length (L1) 23.0 mm
- Compression Load 97 Kg
- Deflection 10.0 mm
- Configuration Male to Blank
- Material Natural Rubber
Product Compliance and Data
Additional Resources
Cross References
- 4040MFB2345
- 4040MFB23-45
