Miniature Bearings Australia
CFB040-35-080M-R60 - Datasheet
MBA
Category Information

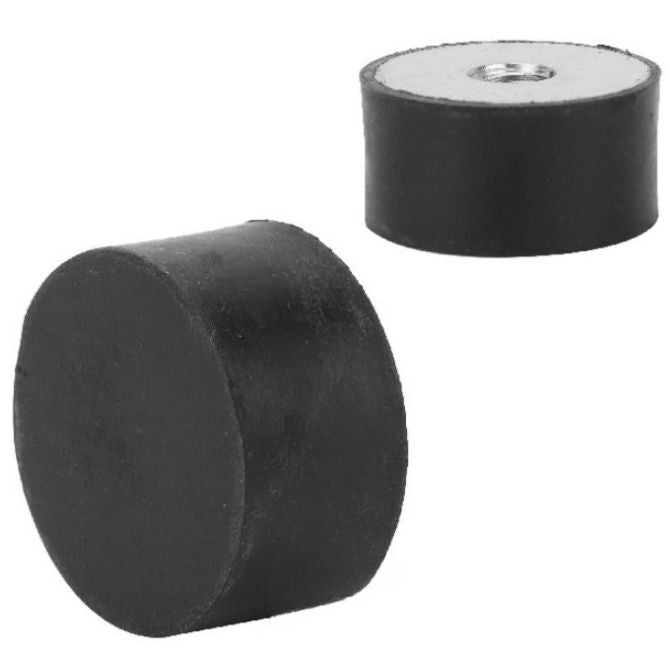

Mounts - Buffer - FemaleFemale Buffer Mounts. Vibration dampening
- An expanded range may be available on special order. Please enquire.
- Also see Bumpers
Product Data
- Nom. Body Diameter (D)
:
40.0
mm
(Equiv. 1.575 in.) - Body Height (H)
35.0
mm
(Equiv. 1.378 in.) - Thread Size M8x1.25
- Shore Hardness 60
- Compression Load 156 Kg (lbs)
- Deflection 8.8 mm
- Configuration Female to Blank
- Material Natural Rubber
Product Compliance and Data
Additional Resources
Cross References
- 4035FFB0860
- 4035FFB08-60
