CMM040-30-080M-R70 - Datasheet

MBA

Category Information

Mounts - Bobbin - Male

Male Bobbin Mounts. Vibration dampening

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Nom. Body Diameter (D) : 40.0 mm
    (Equiv. 1.575 in.)
  • Body Height (H) 30.0 mm
    (Equiv. 1.181 in.)
  • Thread Size M8x1.25
  • Shore Hardness 70
  • Thread Length (L1) 23.0 mm
  • Compression Load 87 (186) Kg (lbs)
  • Deflection 2.6 mm
  • Configuration Male to Male
  • Material Natural Rubber
Country of Origin: GB

Product Compliance and Data

Additional Resources

Cross References

  • 4030MM2370
  • 4030MM23-70
View full details

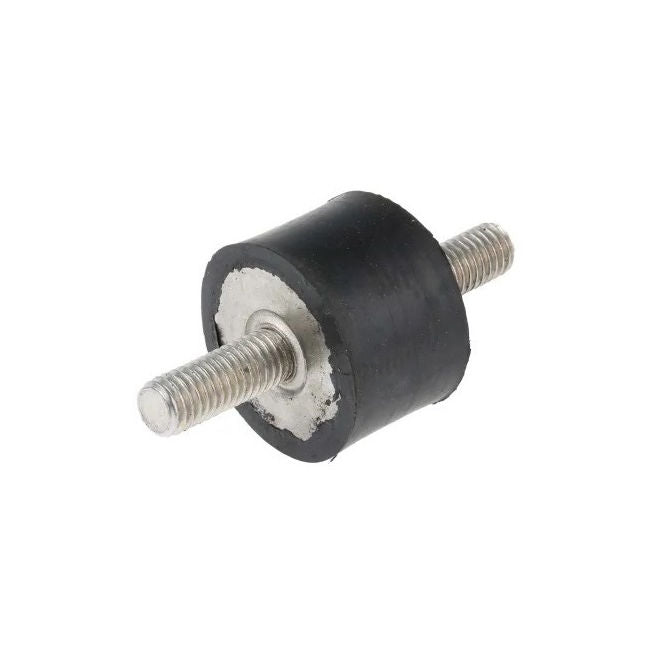

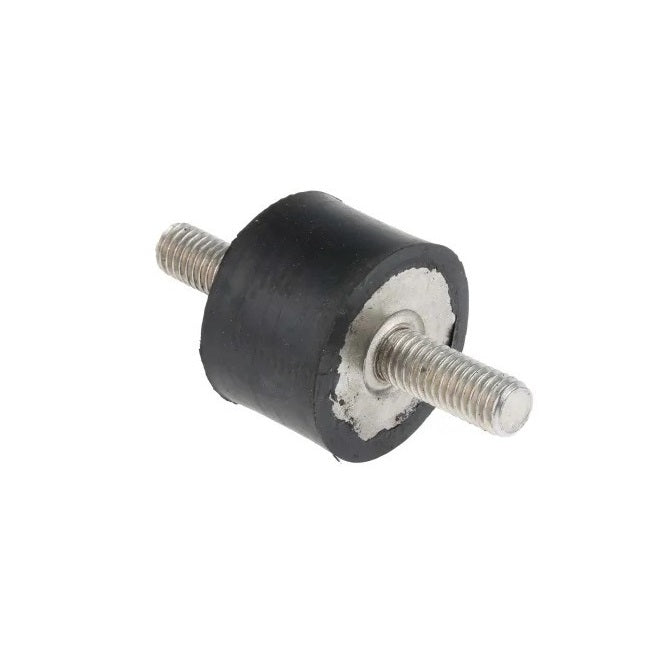

CMM040-30-080M-R70DiagramCMM040-30-080M-R70Image
