CFB040-30-080M-R45 - Datasheet
MBA
Category Information
Mounts - Buffer - FemaleFemale Buffer Mounts. Vibration dampening
- An expanded range may be available on special order. Please enquire.
- Also see Bumpers
Product Data

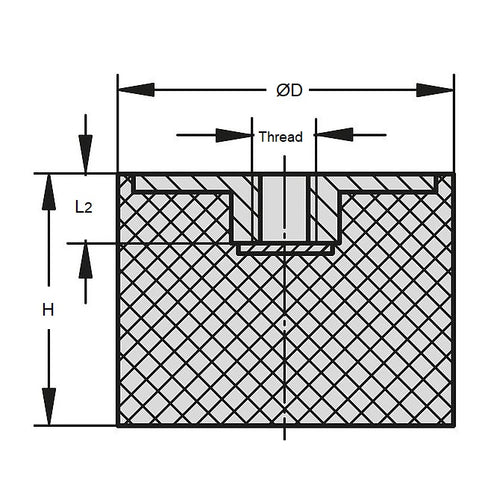

- Nom. Body Diameter (D) : 40.0 mm
- Body Height (H) 30.0 mm
- Thread Size M8x1.25
- Shore Hardness 45
- Compression Load 119 Kg (lbs)
- Deflection 7.5 mm
- Configuration Female to Blank
- Material Natural Rubber
Product Compliance and Data
Additional Resources
Cross References
- 4030FFB08-45
- 4030FFB0845
