CFB040-28-100M-R45 - Datasheet
MBA
Category Information

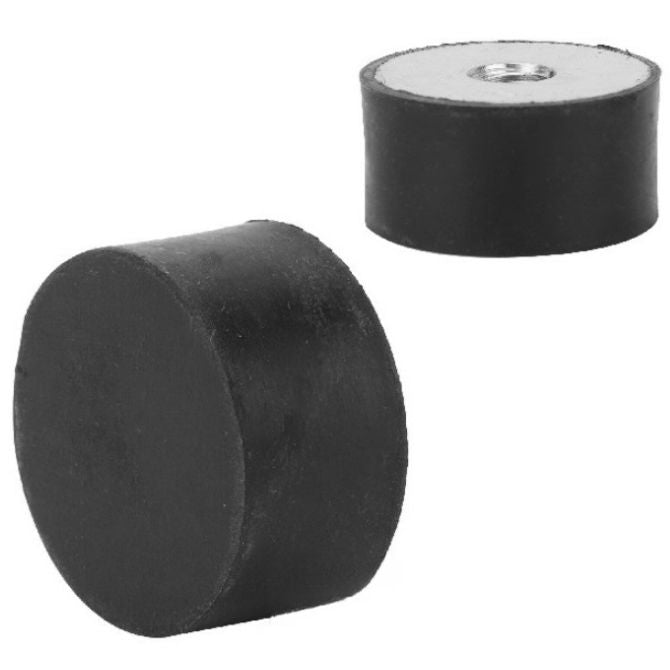

Mounts - Buffer - FemaleFemale Buffer Mounts. Vibration dampening
- An expanded range may be available on special order. Please enquire.
- Also see Bumpers
Product Data
- Nom. Body Diameter (D)
:
40.0
mm
(Equiv. 1.575 in.) - Body Height (H)
28.0
mm
(Equiv. 1.102 in.) - Thread Size M10x1.5
- Shore Hardness 45
- Compression Load 127 Kg (lbs)
- Deflection 7.0 mm
- Configuration Female to Blank
- Material Natural Rubber
Product Compliance and Data
Additional Resources
Cross References
- 4028FFB1045
- 4028FFB10-45
