CMM040-25-080M-R60 - Datasheet

MBA

Category Information

Mounts - Bobbin - Male

Male Bobbin Mounts. Vibration dampening

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Nom. Body Diameter (D) : 40.0 mm
    (Equiv. 1.575 in.)
  • Body Height (H) 25.0 mm
    (Equiv. 0.984 in.)
  • Thread Size M8x1.25
  • Shore Hardness 60
  • Thread Length (L1) 23.0 mm
  • Compression Load 9 (19) Kg (lbs)
  • Configuration Male to Male
  • Material Natural Rubber
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • Misumi C-VV4025-23
  • VM-36-1M
  • VM361M
  • CVV402523
  • AZY84025
  • A-ZY-8-40-25
View full details

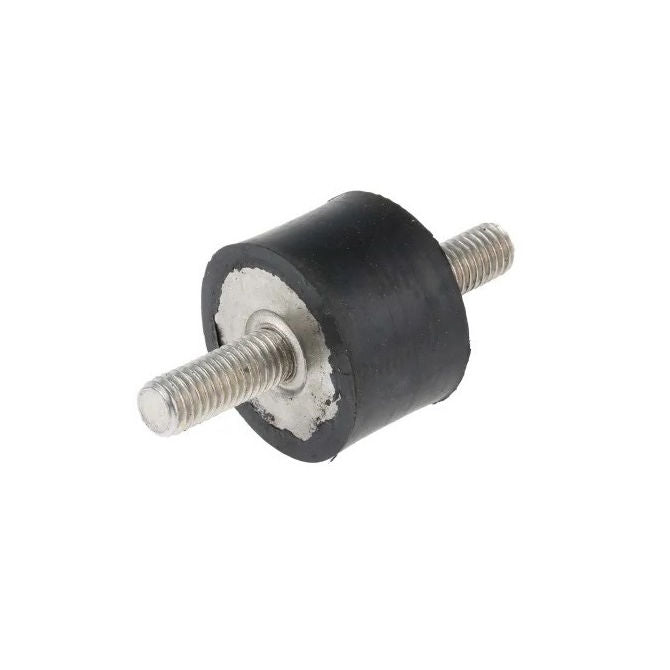

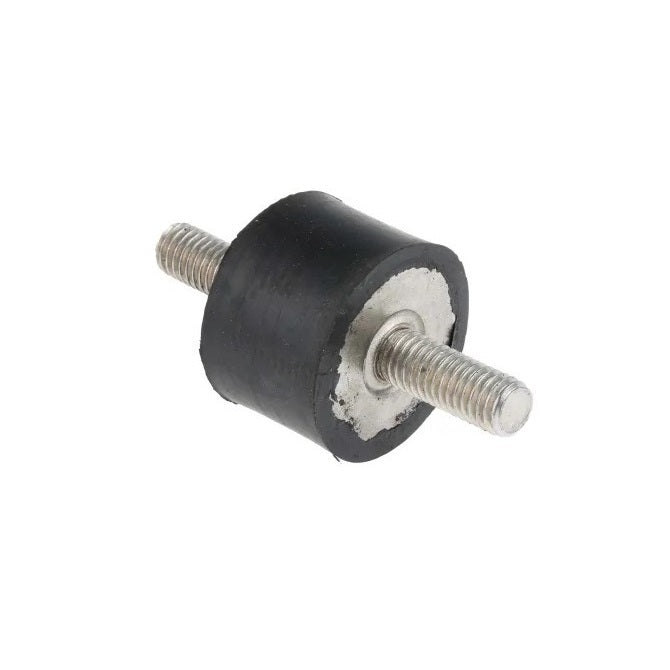

CMM040-25-080M-R60DiagramCMM040-25-080M-R60Image
