CMM040-25-100M-R45 - Datasheet
MBA
Category Information

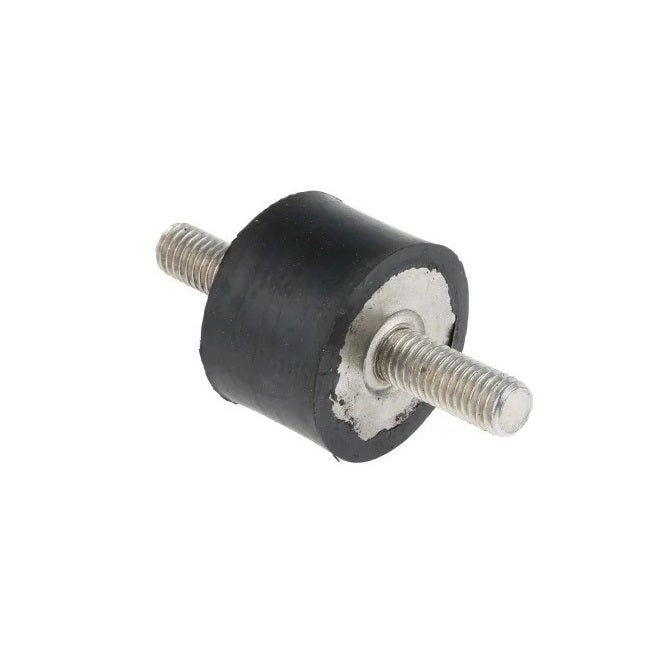

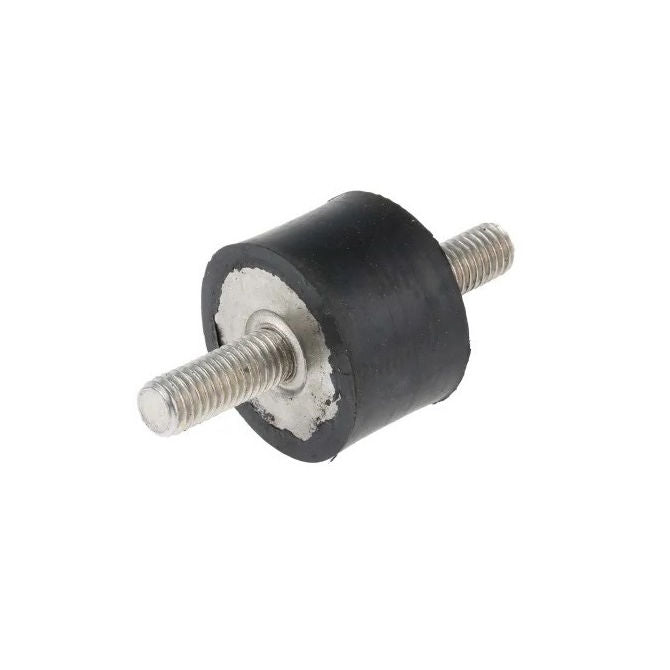

Mounts - Bobbin - MaleMale Bobbin Mounts. Vibration dampening
- An expanded range may be available on special order. Please enquire.
Product Data
- Nom. Body Diameter (D)
:
40.0
mm
(Equiv. 1.575 in.) - Body Height (H)
25.0
mm
(Equiv. 0.984 in.) - Thread Size M10x1.5
- Shore Hardness 45
- Thread Length (L1) 25.0 mm
- Compression Load 38 (81) Kg (lbs)
- Deflection 2.1 mm
- Configuration Male to Male
- Material Natural Rubber
Product Compliance and Data
Additional Resources
Cross References
- 4025MM25-45
- 4025MM2545
