Miniature Bearings Australia - MBA Minibearings
Miniature Bearings Australia

CFB040-20-080M-R60 - Datasheet

MBA

Category Information

Mounts - Buffer - Female

Female Buffer Mounts. Vibration dampening

  • An expanded range may be available on special order. Please enquire.
  • Also see Bumpers

Product Data

  • Nom. Body Diameter (D) : 40.0 mm
  • Body Height (H) 20.0 mm
  • Thread Size M8x1.25
  • Shore Hardness 60
  • Compression Load 238 Kg (lbs)
  • Deflection 5.0 mm
  • Configuration Female to Blank
  • Material Natural Rubber
Country of Origin: GB

Product Compliance and Data

Additional Resources

Cross References

  • Misumi® C-DE4020-8
  • 4020FFB0860
  • 4020FFB08-60
  • CDE40208
View full details

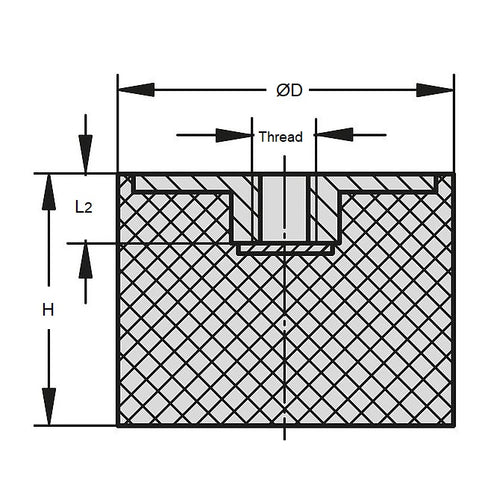

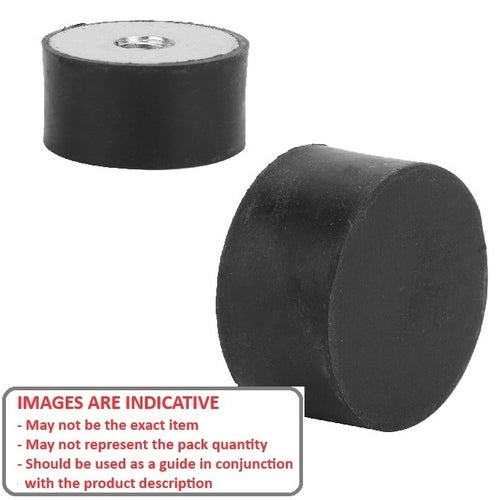

CFB040-20-080M-R60DiagramCFB040-20-080M-R60Image
