CMF040-20-080M15-R45 - Datasheet
MBA
Category Information

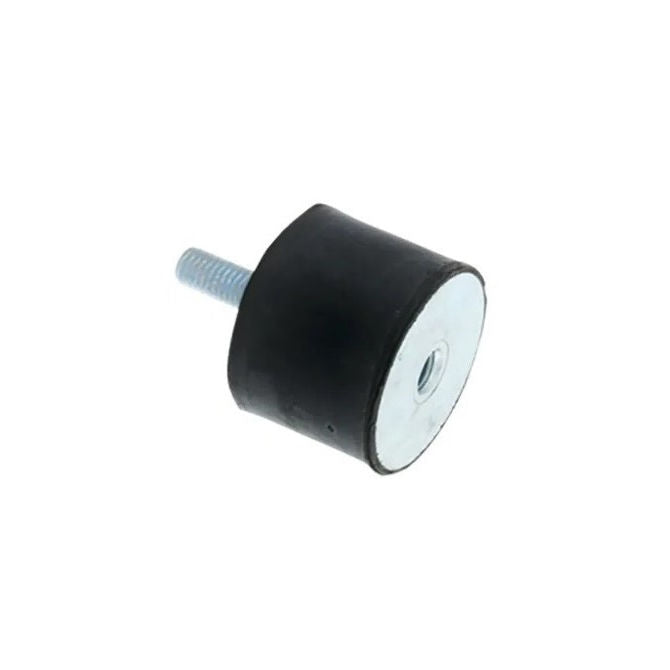

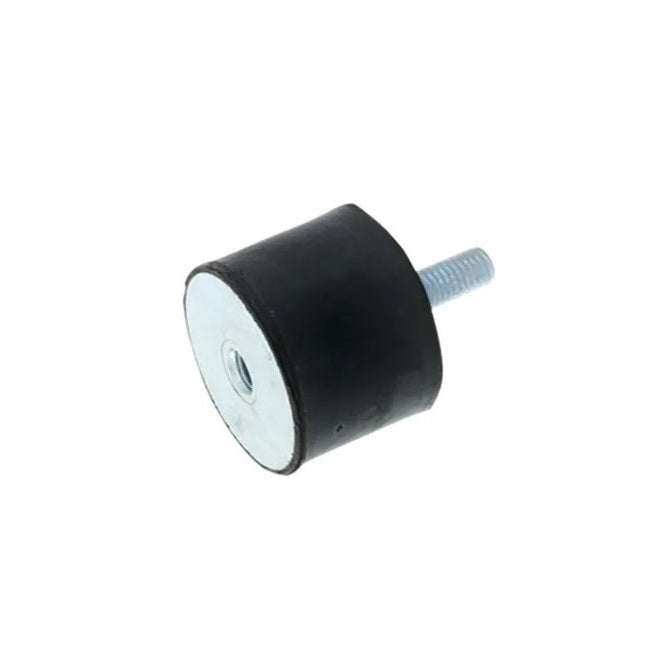

Mounts - Bobbin - Male to FemaleMale to Female Bobbin Mounts. Vibration dampening
- An expanded range may be available on special order. Please enquire.
Product Data
- Nom. Body Diameter (D)
:
40.0
mm
(Equiv. 1.575 in.) - Body Height (H)
20.0
mm
(Equiv. 0.787 in.) - Thread Size M10x1.5
- Shore Hardness 45
- Thread Length/Depth (L1/L2) 15.0 / 8.0 mm
- Compression Load 25 (54) Kg (lbs)
- Deflection 1.6 mm
- Configuration Male to Female
- Material Natural Rubber
Product Compliance and Data
Additional Resources
Cross References
- 4020MF23-45
- 4020MF2345
