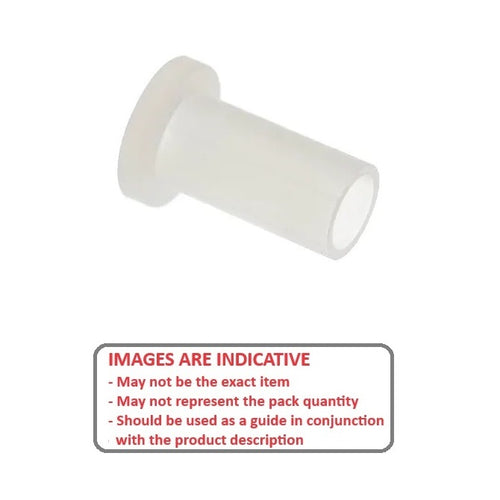

SI-028-048 - Datasheet
MBA
Category Information
Insulators - ScrewScrew Insulators. Non-conductive, non-corrosive, light weight, self-sealing and self-locking.
- This category will be discontinued when the remaining items are sold.
- All items are priced to quit.
- Backorders or orders for previously listed items in the category may still be possible - please enquire.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

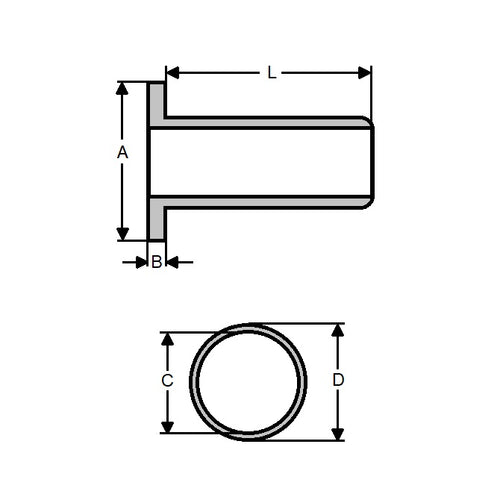

- Thread Size : 4 UNC/UNF (2.85mm)
- Shank Length (L)
4.775
mm
(Equiv. 0.188 in.) - Bore Size (C)
2.921
mm
(Equiv. 0.115 in.) - Shank Diameter (D) 3.683 mm
- Flange Diameter (A) 5.969 mm
- Flange Thickness (B) 1.191 mm
- Material Nylon (Zytel 101)
Product Compliance and Data
Additional Resources
Cross References
- A 9M70-0818
- A9M70-0818
- A9M700818
