SC036B-013-R-SL-BN - Datasheet
MBA
Category Information

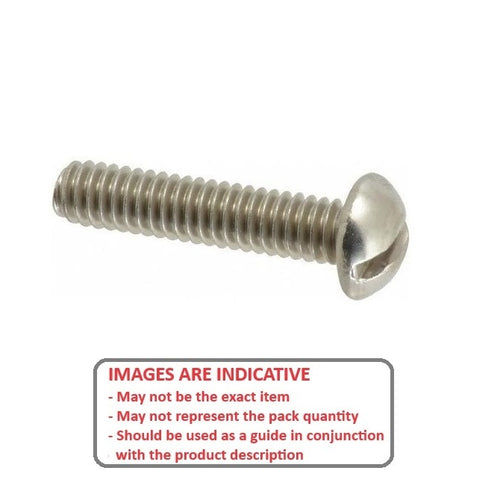

Screws - Round Head - Steel - SlottedSlotted Steel Round Head Screws. Metal Thread Screws. Metric and BSW only. Supplied with nut.
- An expanded range may be available on special order. Please enquire.
- Nuts sold seperately - See Nuts.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Thread Size (C) : 4 BA (3.607mm)
- Thread Length (L)
12.7
mm
(Equiv. 0.5 in.) - Material Nickel Plated Brass
- Max Head Diameter 6.40 mm
- Max Head Height 2.57 mm
- Type Round / Slotted
- Pitch 0.660 mm
- Threads Per Inch 38.49 TPI
- Material Nickel Plated Brass
