PLIT-050-095C-10-G-C - Datasheet
MBA
Category Information

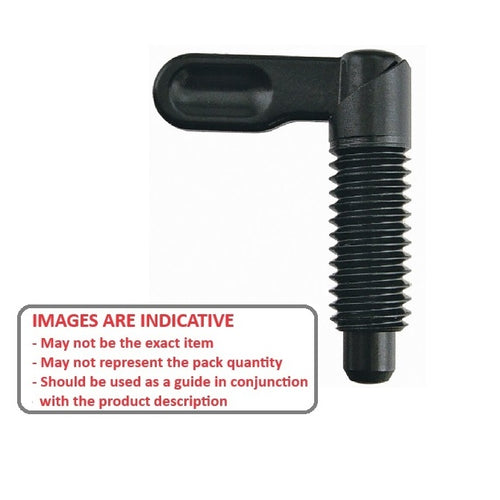

Plungers - Indexing - Grip - Steel - Without NutWithout Nut Steel Grip Indexing Plungers. Grip is held in a notch in the fully retracted position. In this position the locking pin does not project from the body at all.

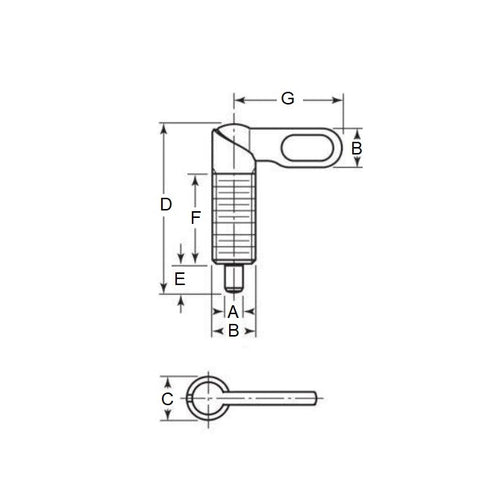

Product Data
- Thread (B) : 3/8-16 UNC (9.53mm)
- Thread Length (F)
20.0
mm
(Equiv. 0.787 in.) - Initial End Force 0.5 N
- Final End Force 0.8 N
- Tip Diameter (A) 5.0 mm
- Tip Length (E) 6.0 mm
- H 14.3
- Handle Length (G) 25.0 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- KBP-671
- KBP671
