DB109RS - Datasheet
MBA
Category Information

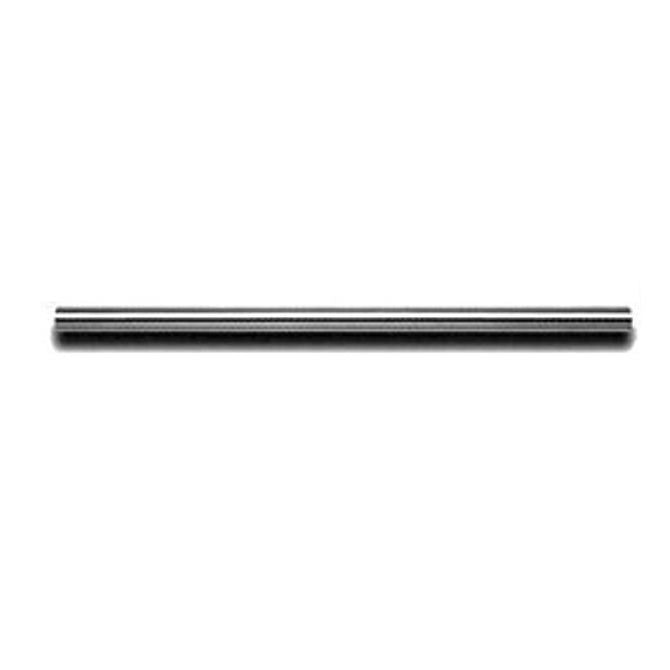

Rod - Drill BlanksDrill Blanks Rod. Made of hardened high speed steel.
- Useful for turning and boring tools, constructing pins, hinge pins, arbors, pin gauges, dowels, preforating punchs.
- Can also be ground to make special cutting tools such as mills, spotfaces, angle or radii cutters, etc.
Product Data
- Nominal Diameter
:
4.915
mm
+ 0.000 / - 0.013
(Equiv. 0.194 in.) - Length
92.08
mm
(Equiv. 3.625 in.) - Letter / Number No 10
- Material High Speed Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- 3009A221
- DB109
- DB-109
