684A-ZZ-MC3 - Datasheet
MBA
Category Information

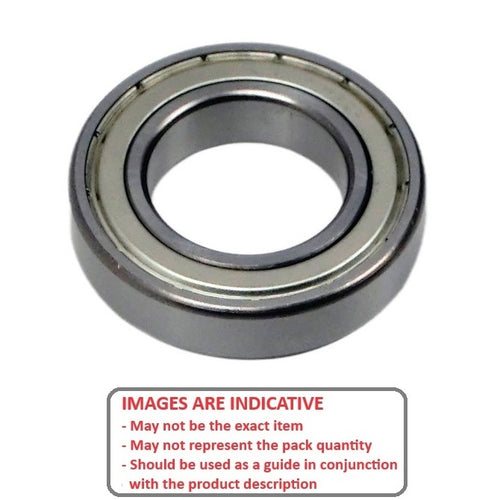

Bearings - Single Row Ball - Unflanged - Precision - Chrome SteelChrome Steel Precision Unflanged Single Row Ball Bearings. Chrome steel radial ball bearings.
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
- Standard single row radial ball bearings.
Product Data

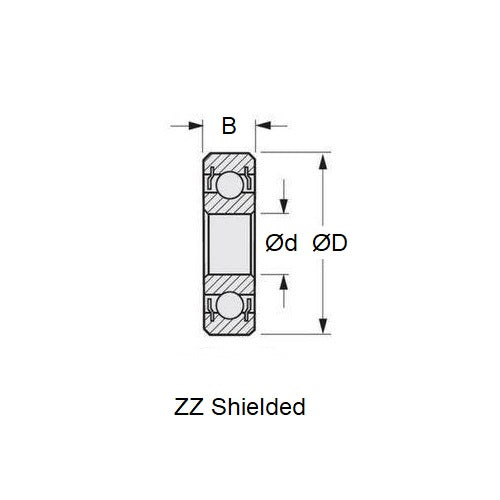

- ID (d)
:
4.000
mm
+ 0.000 / - 0.0075
(Equiv. 0.157 in.) - OD (D)
9.000
mm
+ 0.000 / - 0.0075
(Equiv. 0.354 in.) - Width (B)
4.000
mm
+ 0.000 / - 0.125
(Equiv. 0.157 in.) - Precision Grade Abec 1
- Closure Type ZZ
- Bearing Type Radial
- Material Chrome Steel SAE 52100
- Lubrication Type Grease
- Lubrication Name Standard Unspecified
- Basic Part 684A
- Limiting Speed 53000
- Cage Type Standard
- Static Load Rating KGf 23
- Dynamic Load Rating KGf 65
- Radii 0.10 mm
- Inner Shoulder (UI) 5.20mm
- Outer Shoulder (UO) 8.10 mm
- Number of Balls 7
- Clearance MC3 (5 to 10)
- Precision Grade Abec 1
- Closure Type ZZ
- Max Temperature 120 Deg. C
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Applications & Uses
- Brushless Motor Bearings
- E-Flite - Park 480 - Front Bearing
Cross References
- HIROBO 2500-043
- HIROBO 2500-061
- WIB 638-4-2Z
- WIB 638-4-Z
- ADR 638-4-ZZ
- Shielded Width A 684/4
- GRW 684-2Z
- Shielded 684A / 4
- ISO 684ZZ
- ISO 684-ZZ
- NTN 684-ZZ
- WTW 684-ZZ
- GMP 9603
- MPB UL40CHH
- NTN W684AX50-ZZ
- NTN W684-ZZ
- W684ZZ
- W684AX50ZZ
- 2500061
- 2500043
- L940-ZZ
- L940ZZ
- 684SS
- 63842Z
- 6384Z
- 6384ZZ
- 6842Z
- 684AZZMC3
- 684A-ZZMC3
- 684A Basic Size Ref
