CS-0480-0280-08-S2-C - Datasheet
MBA
Category Information

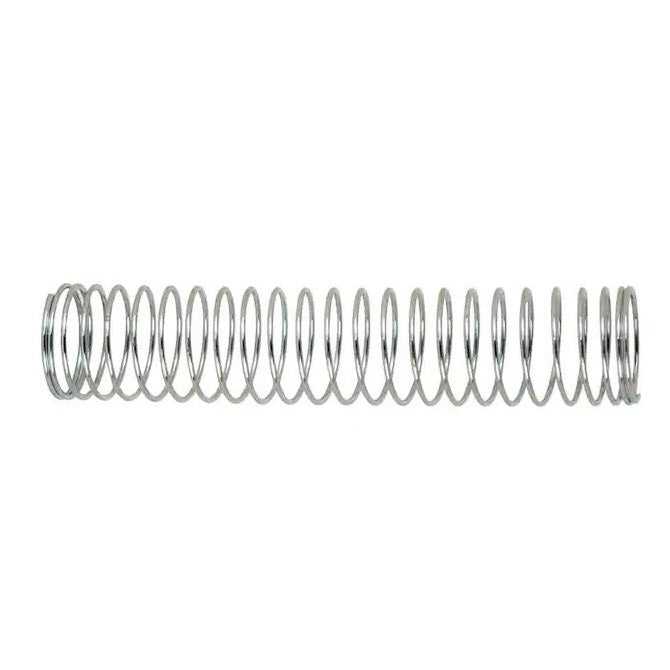

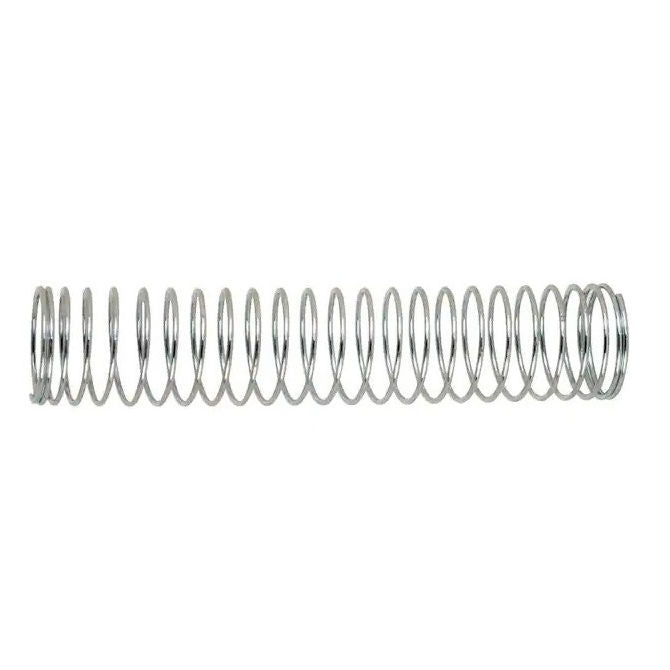

Springs - Compression - Stainless SteelStainless Steel Compression Springs. 300 gradd stainless steel selection, including 303, 304 and 316. Standard springs may or may not be suplied with ground flush ends.
- Helical coil spring designed to resist compressive forces, meaning it shortens in length when pushed or squeezed.
- Used in a wide range of applications, such as pens, door hardware, machinery in automotive, aerospace, and manufacturing industries.
- This category includes short and long lengths.
- If the end type is important to your application please contact us for more information or a special quote.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Spring OD (D0)
:
4.80
mm
+/- 0.127
(Equiv. 0.189 in.) - Free Length (L0)
28.0
mm
+/- 1.27
(Equiv. 1.102 in.) - Wire Diameter (d)
0.80
mm
+/- 0.015
(Equiv. 0.031 in.) - Loaded Height (L1) 19.10 mm
- Load at L1 26.55 N
- Rate (P/f) 2.9 N/mm
- Solid Height (Sh) 17.20 mm
- Approx. ID 3.2 mm
- End Type Closed
- Max Rod Dia. (A) 2.96 mm
- Material Stainless Steel 302/304 (Similar to A2, 18-8)
Product Compliance and Data
Additional Resources
Cross References
- CD2164
