REM-048-R-SN - Datasheet
MBA
Category Information

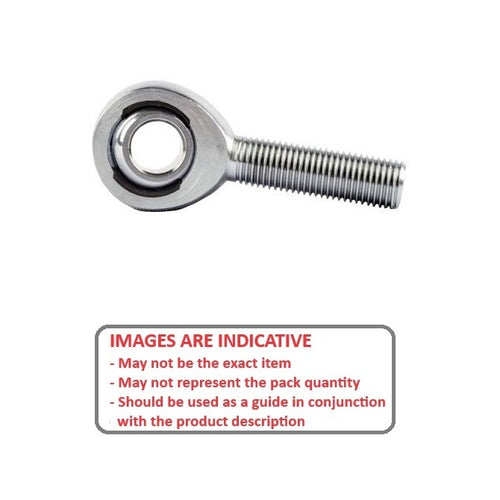

Rod Ends - Male - Stainless - 303 Housing and Ball Nylon Raceway303 Housing and Ball Nylon Raceway Stainless Male Rod Ends. Also known as Heim Joints
- An expanded range may be available on special order. Please enquire.
Product Data
- Eye Size (d1)
:
4.826
mm
(Equiv. 0.19 in.) - Thread Size 10-32 UNF Right
- Min. Thread Length (l2) 19.05 mm
- Head Width (W) 6.35 mm
- Eye Width (W1) 7.93 mm
- Head Diameter (D) 15.88 mm
- Centre Height (l1) 31.75 mm
- Grease Nipple No
- Material Stainless Steel with Nylon
Product Compliance and Data
Additional Resources
Cross References
- SSPM-3
- SSPM3
