REM-048-R-CT - Datasheet
MBA
Category Information

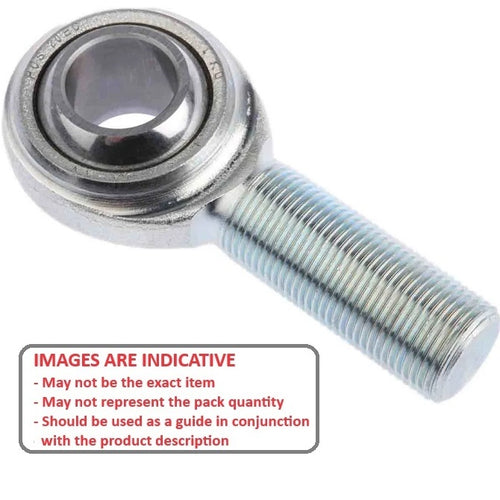

Rod Ends - Male - Steel - Tight Fit PTFE LinedTight Fit PTFE Lined Steel Male Rod Ends. Imperial and Metric. Tight fit (Minimal ball clearance) / Carbon Steel. Also known as Heim Joints
- An expanded range may be available on special order. Please enquire.
- Dimensions not shown are available on request.
Product Data
- Eye Size (d1)
:
4.826
mm
(Equiv. 0.19 in.) - Overall Length (L)
39.70
mm
(Equiv. 1.563 in.) - Thread Size 10-32 UNF Right
- Min. Thread Length (l2) 19.05 mm
- Head Width (W) 6.35 mm
- Eye Width (W1) 7.92 mm
- Head Diameter (D) 15.88 mm
- Centre Height (l1) 31.75 mm
- Material Steel PTFE Lined
Product Compliance and Data
Additional Resources
Cross References
- 2458K11-RIGHT
- MTR DIM3
- KWK TMB3
- 2458K11RIGHT
