Miniature Bearings Australia
PUI048-0400-066-A - Datasheet
MBA
Category Information

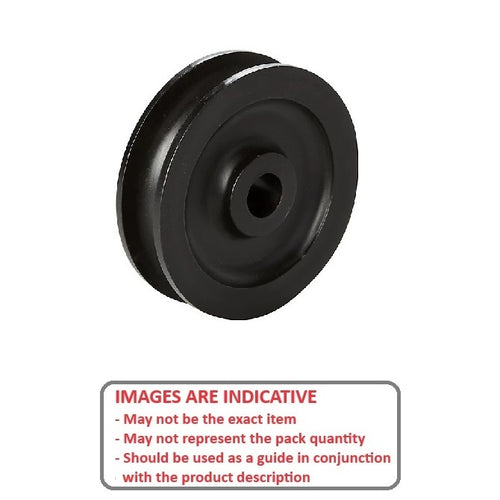

Pulleys - U Groove Idler - Single Row - Plastic With Plain BorePlastic With Plain Bore Single Row U Groove Idler Pulleys. Plastic and Steel with Steel Ball Bearings or Plain Bearings.
- Use with round belts such as Rounthane or O-Rings
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

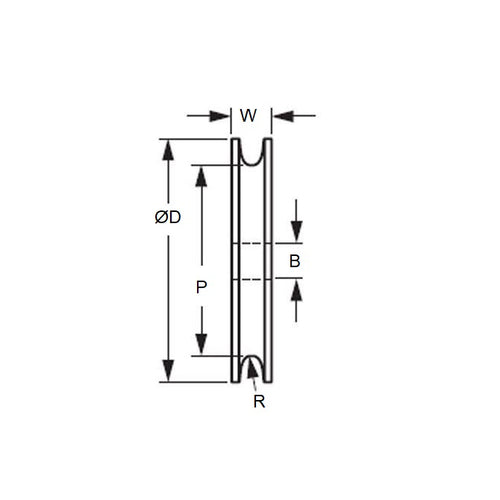

- Maximum Cable Diameter (H)
:
4.78
mm
+/- 0.127
(Equiv. 0.188 in.) - Outside Diameter (OD)
40.00
mm
(Equiv. 1.575 in.) - Bore (B)
6.553
mm
(Equiv. 0.258 in.) - Overall Width (OAL) 8.382
- Dia. to Base of Groove (P) 31.12 mm
- Type Plain Bearing - Light Duty
- Groove Radius (R) 2.41
- Material Acetal - Black
Product Compliance and Data
Additional Resources
Cross References
- 3434T38
- A6M9-02508
- A6M902508
- CBL-880
- CBL880
