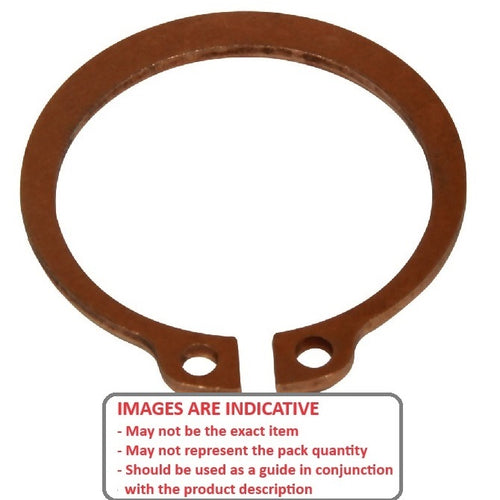

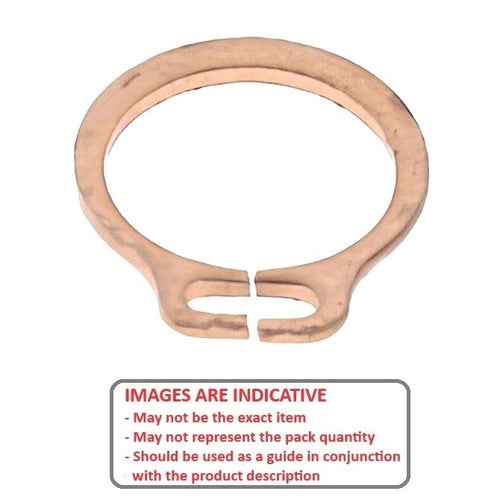

CCE-00478-B - Datasheet

MBA

Product Data

• Shaft Diameter (Ds) : 4.78 mm
  (Equiv. 0.188 in.)
• Clip Thickness (T) 0.38 mm _{+/- 0.038}
  (Equiv. 0.015 in.)
• Groove Dia. (Dg) 4.45 mm _{+/- 0.051}
  (Equiv. 0.175 in.)
• Approx. Loose Circlip ID (A) 4.27 mm
• Groove Width (W) 0.46 mm
• Clearance on Shaft (C1) 7.62 mm
• Clearance in Groove (C1) 7.26 mm
• Min. Lug Diameter (h) 0.58 mm
• Min. Extension (n) 0.56
• Standard MIL-16624
• Material Beryllium Copper

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Anderton and Seeger Cross Reference PDF

• Circlips PDF Catalogue

• Assortment Kits


• Measuring Small Parts
• Metalworking Resource Guide

• Circlips & E-Clips Catalogue
• Snap Rings Catalogue
• Stainless Steel Retaining Ring Material

Cross References

• Seeger A3-16X.015IN
• Small Parts RE-3
• NoCor SH-018-BC
• RE3
• SH018BC
• N1400-0018
• N1400-0018BC
• N14000018BC
• A316X015IN
