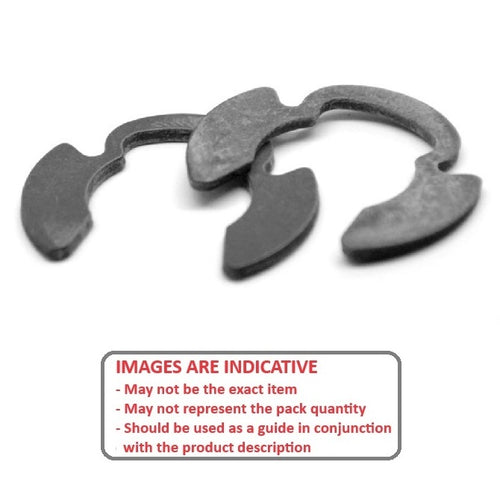

ECL-0038-0048-S15-KR - Datasheet

MBA

Product Data

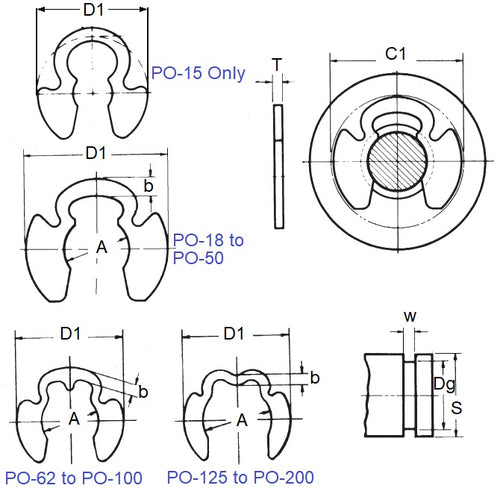

• Minimum Rec. Shaft Dia (S) : 4.78 mm _{+ 1.52 / - 0.00}
  (Equiv. 0.188 in.)
• Groove Dia. (Dg) 3.76 mm _{+/- 0.152}
  (Equiv. 0.148 in.)
• Clip Thickness (T) 0.89 mm _{+/ - 0.052}
  (Equiv. 0.035 in.)
• Clip OD Loose (D1) 10.16 mm
• Groove Width (W) 0.99 mm
• Maximum Rec. Shaft Dia (S) 6.30
• Clip OD in groove (C1) 10.67 mm
• Loose Clip ID (A) 3.56 mm
• Min. Extension (n) 1.02
• Material Stainless Steel Grade PH15-7 Mo

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Assortment Kits


• Measuring Small Parts
• Metalworking Resource Guide

• Circlips & E-Clips Catalogue
• Snap Rings Catalogue
• Stainless Steel Retaining Ring Material

Cross References

• Waldes 5304-018-SS
• 94751A754
• NoCor PO-018-SS
• Rotor Clip PO-018-SS
• PO018SS
• 5304018SS
