ECL-0037-0048A-S15 - Datasheet
MBA
Category Information

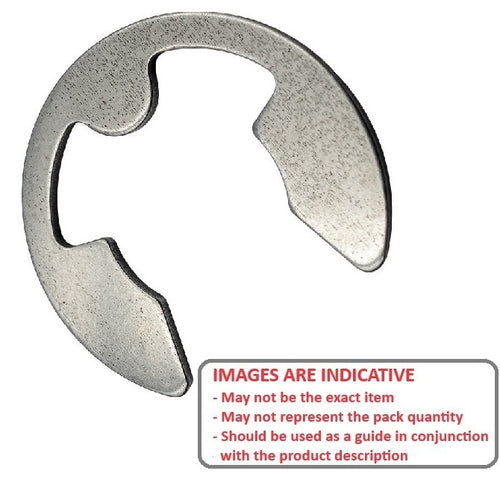

Retaining Rings - E-Clips - Basic - Stainless SteelStainless Steel Basic E-Clips Retaining Rings. Basic imperial and metric e-clips DIN6799 and N1500. Stainless Steel PH15-7 Mo.
- An expanded range may be available on special order. Please enquire.
- Not all e-clips are exactly the same style, however all follow the basic principal of a push on clip.
Product Data
- Minimum Rec. Shaft Dia (S)
:
4.78
mm
+ 1.52 / - 0.00
(Equiv. 0.188 in.) - Groove Dia. (Dg)
3.73
mm
+ 0.051 / - 0.000
(Equiv. 0.147 in.) - Clip Thickness (T)
0.64
mm
+/ - 0.050
(Equiv. 0.025 in.) - Clip OD Loose (D1) 8.51 mm
- Groove Width (W) 0.74 mm
- Maximum Rec. Shaft Dia (S) 6.30
- Clip OD in groove (C1) 8.89 mm
- Loose Clip ID (A) 3.68 mm
- Min. Extension (n) 1.10
- Standard MIL-16633
- Material Stainless Steel Grade PH15-7 Mo
Product Compliance and Data
Additional Resources
Cross References
- Waldes 5133-018-SS
- 98408A126
- Ellison E-018-SS
- NoCor E-018-SS
- Rotorclip E-018-SS
- E018SS
- 5133018SS
- N15000018KSF
- N1500-0018KSF
- N1500-018-SS
- N1500018SS
- S73LW2ER13318
- S73LW2-ER133-18
