ECB-0037-0048-C - Datasheet
MBA
Category Information

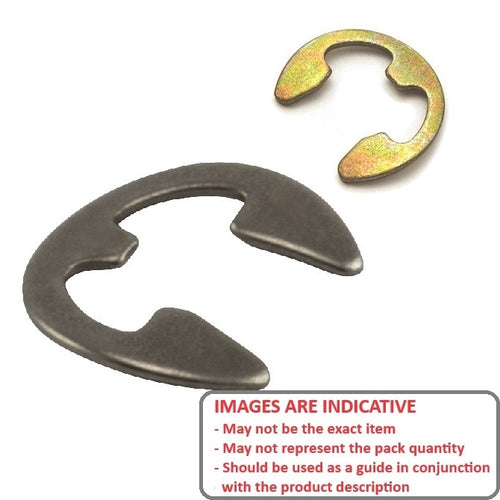

Retaining Rings - E-Clips - BowedBowed E-Clips Retaining Rings. For end play take up.
- An expanded range may be available on special order. Please enquire.
- Thickness tolerance +/- 0.025.
Product Data

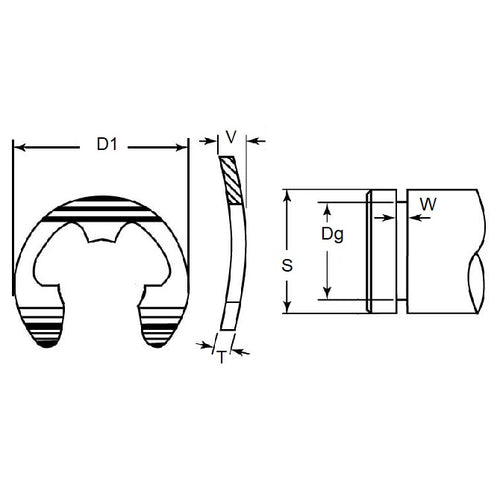

- Minimum Rec. Shaft Dia (S)
:
4.78
mm
(Equiv. 0.188 in.) - Groove Dia. (Dg)
3.73
mm
+ 0.051 / - 0.000
(Equiv. 0.147 in.) - Clip Thickness (T)
0.38
mm
+/ - 0.051
(Equiv. 0.015 in.) - Clip OD Loose (D1) 8.51 mm
- Groove Width (W) 0.51 mm
- Ring Width (X) 0.76 mm
- Force Required to Flatten 5.4 kg
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- 98398A118
- N1501-0018
- N15010018
