ECL-0032-0048A-C - Datasheet
MBA
Category Information

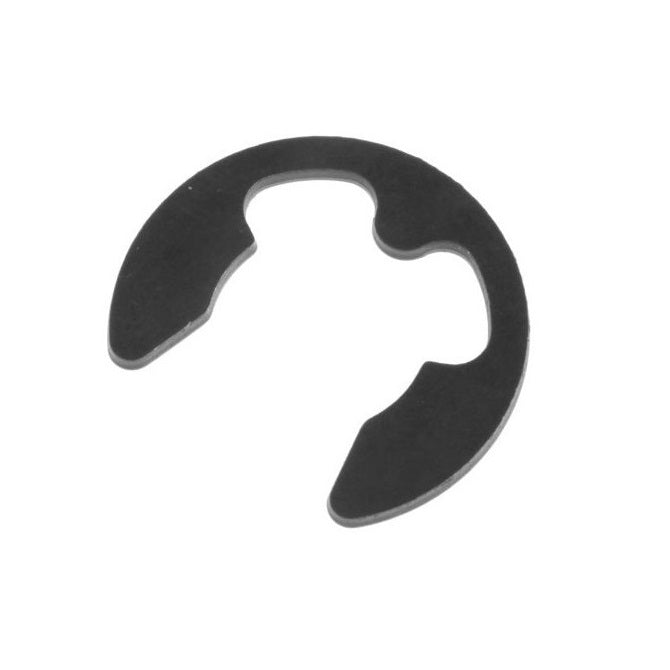

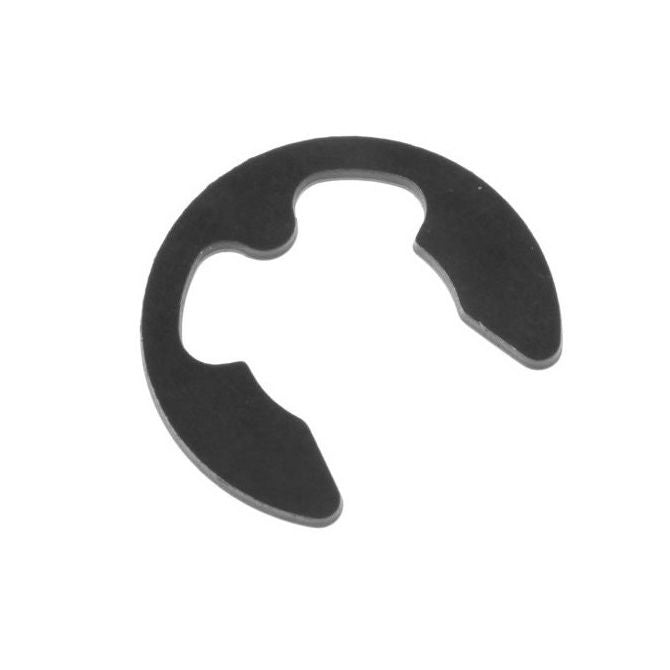

Retaining Rings - E-Clips - Basic - Carbon SteelCarbon Steel Basic E-Clips Retaining Rings. Basic imperial and metric e-clips DIN6799 and N1500. Carbon spring steel including zinc plated and plain.
- An expanded range may be available on special order. Please enquire.
- Not all e-clips are exactly the same style, however all follow the basic principal of a push on clip.
- Includes plain and zinc plated.
Product Data
- Minimum Rec. Shaft Dia (S)
:
4.78
mm
+ 1.52 / - 0.00
(Equiv. 0.188 in.) - Groove Dia. (Dg)
3.18
mm
+ 0.051 / - 0.000
(Equiv. 0.125 in.) - Clip Thickness (T)
0.64
mm
+/ - 0.050
(Equiv. 0.025 in.) - Clip OD Loose (D1) 9.53 mm
- Groove Width (W) 0.74 mm
- Maximum Rec. Shaft Dia (S) 6.30
- Clip OD in groove (C1) 9.53 mm
- Loose Clip ID (A) 3.10 mm
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- NoCor SE-018
- A9Q29X18
- A9Q29-X18
- SE018
- N1500X018
- N1500-X018
