ECL-0037-0048B-C - Datasheet
MBA
Category Information

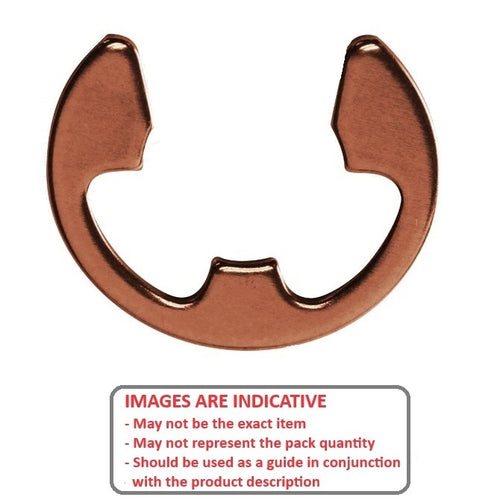

Retaining Rings - E-Clips - Basic - Carbon SteelCarbon Steel Basic E-Clips Retaining Rings. Basic imperial and metric e-clips DIN6799 and N1500. Carbon spring steel including zinc plated and plain.
- An expanded range may be available on special order. Please enquire.
- Not all e-clips are exactly the same style, however all follow the basic principal of a push on clip.
- Includes plain and zinc plated.
Product Data
- Minimum Rec. Shaft Dia (S)
:
4.78
mm
+ 1.52 / - 0.00
(Equiv. 0.188 in.) - Groove Dia. (Dg)
3.73
mm
+ 0.051 / - 0.000
(Equiv. 0.147 in.) - Clip Thickness (T)
0.64
mm
+/ - 0.052
(Equiv. 0.025 in.) - Clip OD Loose (D1) 9.53 mm
- Groove Width (W) 0.74 mm
- Maximum Rec. Shaft Dia (S) 6.30
- Clip OD in groove (C1) 9.91 mm
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- N15400018
- N1540-0018
- N15400018APP
- N1540-0018APP
