TR-048-057-127-C - Datasheet
MBA
Category Information

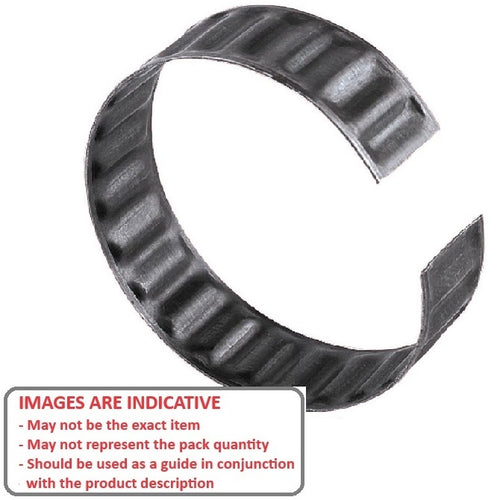

Retaining Rings - ToleranceTolerance Retaining Rings. Tolerance rings allow looser tolerances for assembly of parts such as bearings, pulleys and gears.
- An expanded range may be available on special order. Please enquire.
- Allows looser tolerances of components.
- Ideal for mounting ball bearings.
- Useful for salvaging worn parts.
- Permits low cost assembly by eliminating the need for conventional fasteners.
- Use Torque Transfer figures for gears and pulleys. Non torque transfer figures are for bearing applications.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

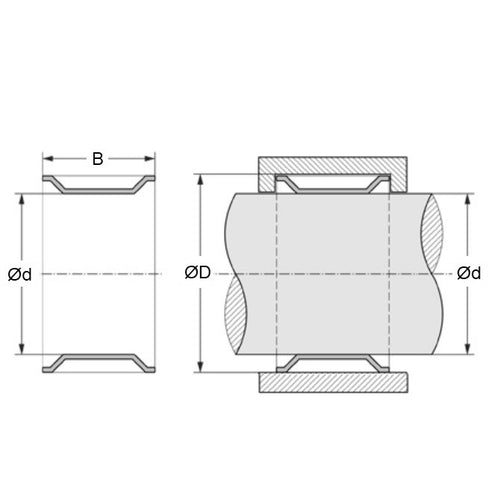

- Inner Part OD (d)
:
4.775 to 4.750
mm
(Equiv. 0.188 in.) - Housing ID (D)
5.740 to 5.690
mm
(Equiv. 0.226 in.) - Ring Width (B)
12.70
mm
(Equiv. 0.5 in.) - Outer Part ID (DT) mm 5.613 to 5.563 For Torque Transfer
- Max. Design Torque 0.79 N.m
- Style For bearing OD
- Max. Radial Load 222 N
- Max. Design Thrust 334 N
- To Suit OD of Bearing R1, R133
- Material High Carbon Spring Steel
Product Compliance and Data
Additional Resources
Cross References
- S77RH1-018050
- S77RH1018050
