RP048-0413-Z - Datasheet
Brighton Best
Category Information

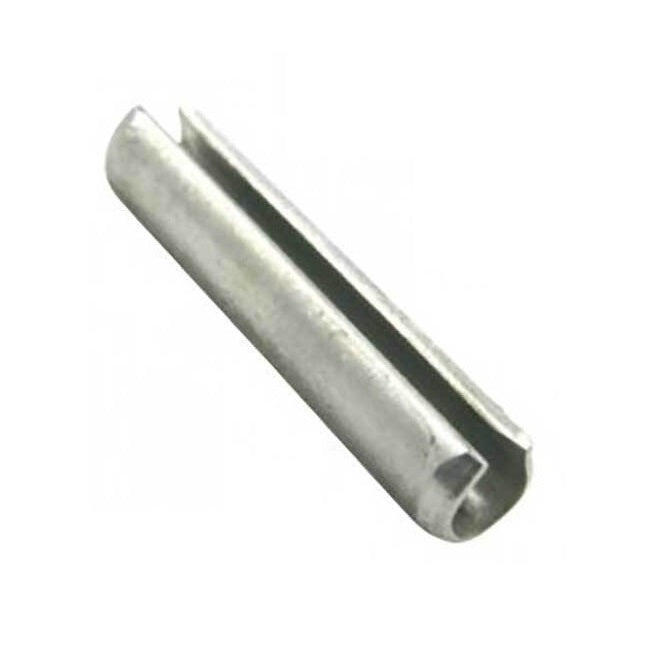

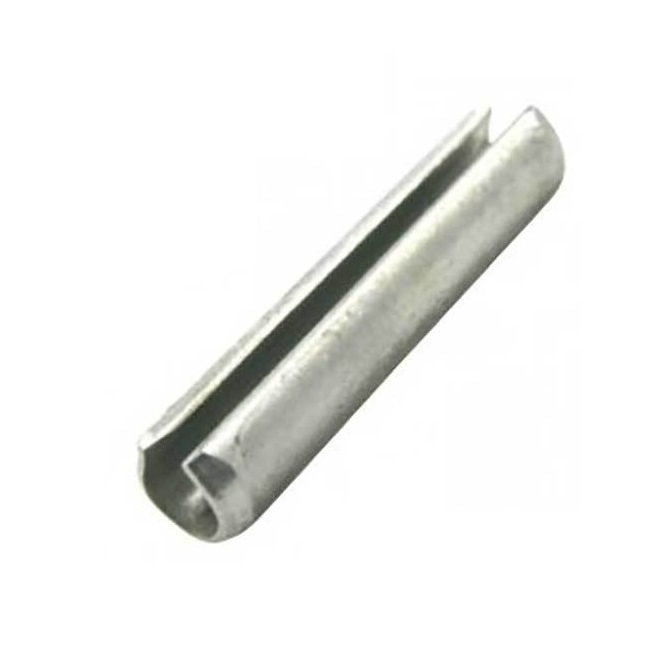

Pins - Roll - Zinc PlatedZinc Plated Roll Pins. Zinc plated spring steel DIN1481/ISO8752.
- An expanded range may be available on special order. Please enquire.
- Also known as sel-lok and bissell pins
Product Data
- Nominal Diameter (D)
:
4.76
mm
(Equiv. 0.187 in.) - Length (L)
41.30
mm
(Equiv. 1.626 in.) - Free Diameter
5.24
mm
(Equiv. 0.206 in.) - Thickness (S) 1.02 mm
- Chamfer Length (cL) 0.28-1.40 mm
- Chamfer Diameter (cD) 4.6 mm
- Standard DIN1481 / ISO8752
- Material Carbon Spring Steel Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- 90692A732
- NoCor SP-187-1626
- Brighton Best V80125
- SP1871626
