K-0476-0476-2540-KS6 - Datasheet
ExaktKey
Category Information

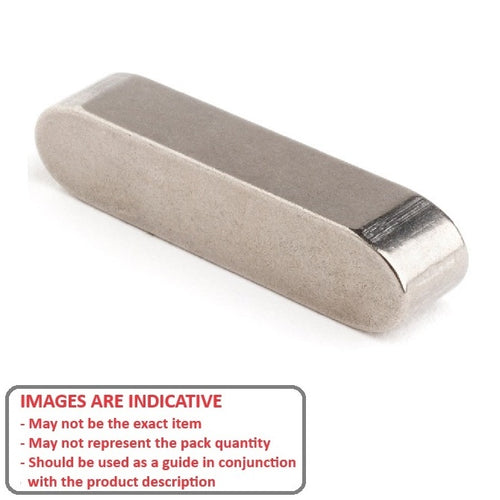

Keys - Machine - Stainless SteelStainless Steel Machine Keys. Form A has rounded ends. Form B has square ends. Form AB has one end rounded and one end square. DIN6885
- An expanded range may be available on special order. Please enquire.
Product Data
- Width (W)
:
4.76
mm
(Equiv. 0.187 in.) - Height (h)
4.76
mm
(Equiv. 0.187 in.) - Length (L)
25.40
mm
(Equiv. 1 in.) - Tolerance Type Standard Undersized
- End Type B (Square Ends)
- Material Stainless Steel 316 (Similar to A4, 18-10)
Product Compliance and Data
Additional Resources
Cross References
- NoCor 8001870187-1000
- 80018701871000
