RP048-0381-420 - Datasheet
MBA
Category Information

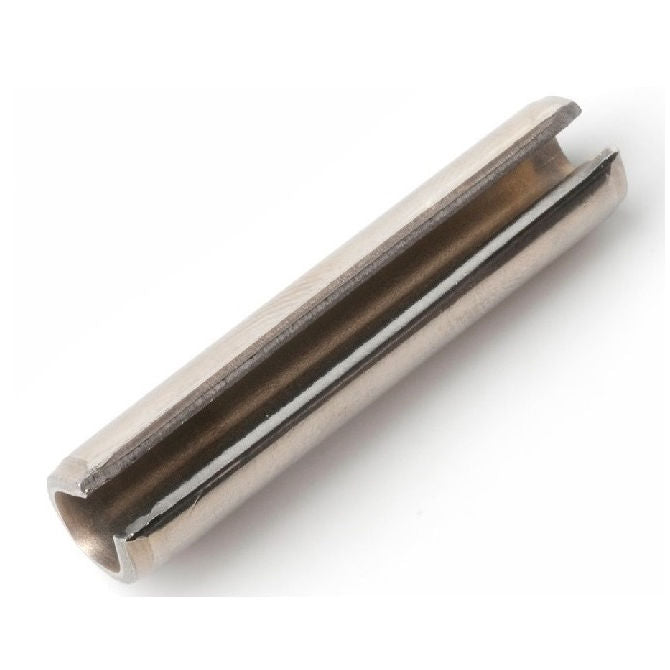

Pins - Roll - Stainless Steel - 420 Grade420 Grade Stainless Steel Roll Pins. 420 grade stainless DIN1481/ISO8752.
- An expanded range may be available on special order. Please enquire.
- Also known as sel-lok and bissell pins
Product Data
- Nominal Diameter (D)
:
4.76
mm
(Equiv. 0.187 in.) - Length (L)
38.10
mm
(Equiv. 1.5 in.) - Free Diameter
5.24
mm
(Equiv. 0.206 in.) - Thickness (S) 1.02 mm
- Chamfer Length (cL) 0.28-1.40 mm
- Chamfer Diameter (cD) 4.6 mm
- Standard DIN1481 / ISO8752
- Type Standard
- Material Stainless Steel AISI 420C Rc 46-52
Product Compliance and Data
Additional Resources
Cross References
- Brighton Best 803124
- 92383A734
- Small Parts DWX-3-24
- NoCor SPS420-187-1500-420SS
- NoCor SPSP-187-1500
- NoCor SPSP-187-1500-420SS
- DWX324
- P245
- P-245
- SPSP1871500420SS
- SPS4201871500420SS
- A9Y35-0648
- A9Y350648
