RP048-0349-Z - Datasheet
Brighton Best
Category Information

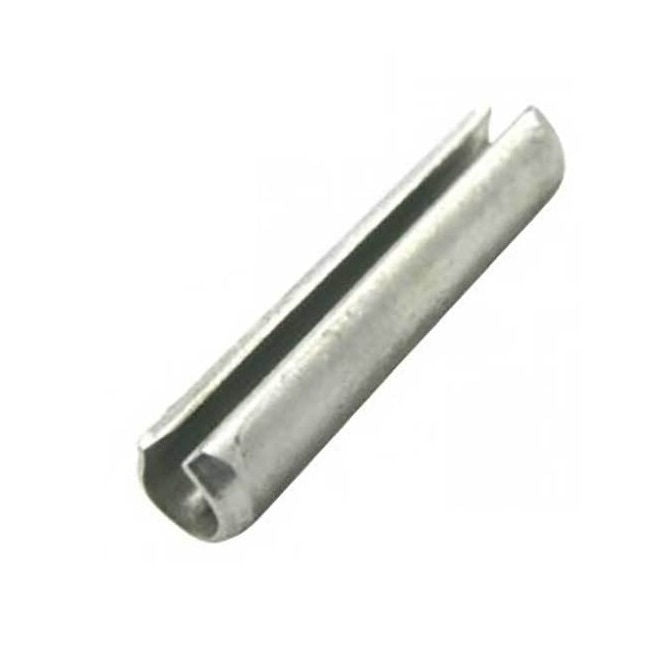

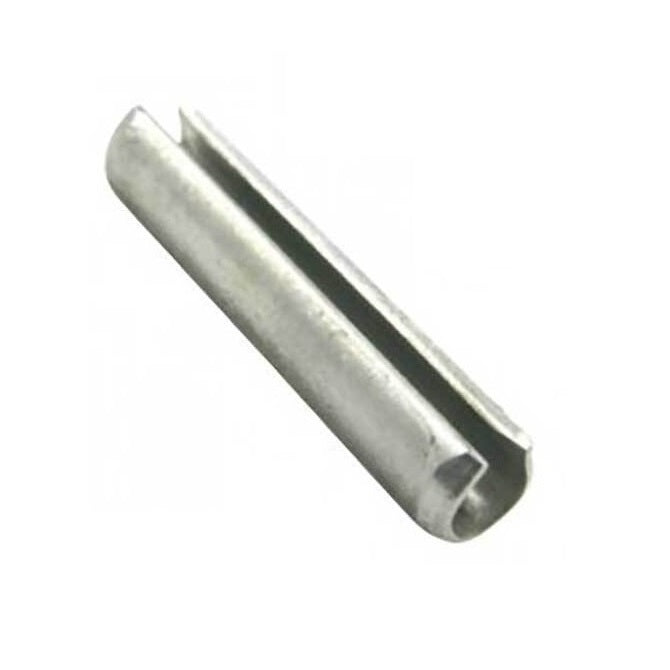

Pins - Roll - Zinc PlatedZinc Plated Roll Pins. Zinc plated spring steel DIN1481/ISO8752.
- An expanded range may be available on special order. Please enquire.
- Also known as sel-lok and bissell pins
Product Data
- Nominal Diameter (D) : 4.76 mm
- Length (L) 34.90 mm
- Free Diameter 5.24 mm
- Thickness (S) 1.02 mm
- Chamfer Length (cL) 0.28-1.40 mm
- Chamfer Diameter (cD) 4.6 mm
- Standard DIN1481 / ISO8752
- Material Carbon Spring Steel Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- 90692A786
- NoCor® SP-187-1374
- Brighton Best® V80123
- SP1871374
