Miniature Bearings Australia

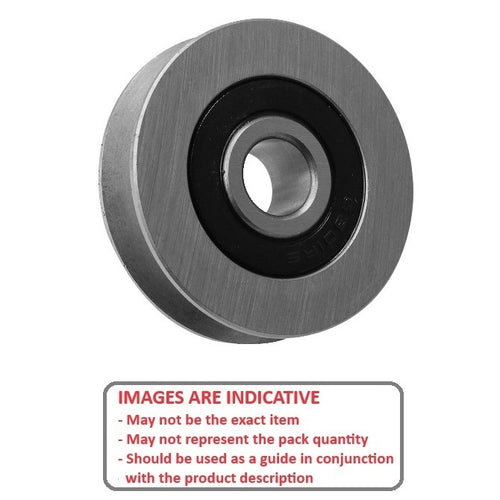

PUI048-0318-064-ZB - Datasheet
MBA
Category Information
Pulleys - U Groove Idler - Single Row - SteelSteel Single Row U Groove Idler Pulleys. Steel with Steel Ball Bearings
- Use with round belts such as Round Seamless Urethane or O-Rings
- Also used to run on round shafting or curved tracks
Product Data

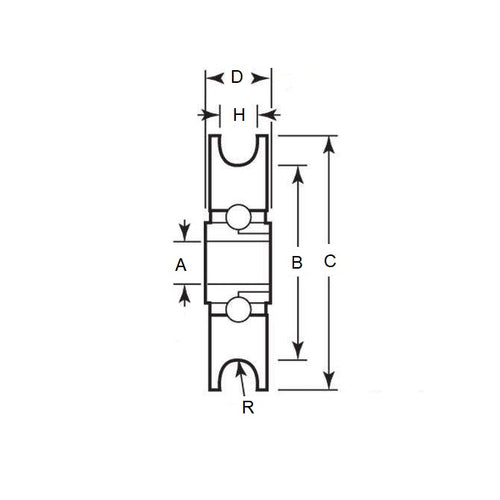

- Maximum Cable Diameter (H) : 4.76 mm
- Outside Diameter (OD) 31.75 mm
- Bore (A) 6.350 mm
- Body Width 9.53 mm
- Overall Width (OAL) 11.10
- Dia. to Base of Groove (B) 22.23 mm
- Type Unground Open Ball Bearing - Hardened Raceway - Heavy Duty
- Groove Radius (R) 2.36
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- Reid Tool® CBL-940
- CBL940
