Miniature Bearings Australia
0T-0048-0032-0300-SS304 - Datasheet
MBA
Category Information

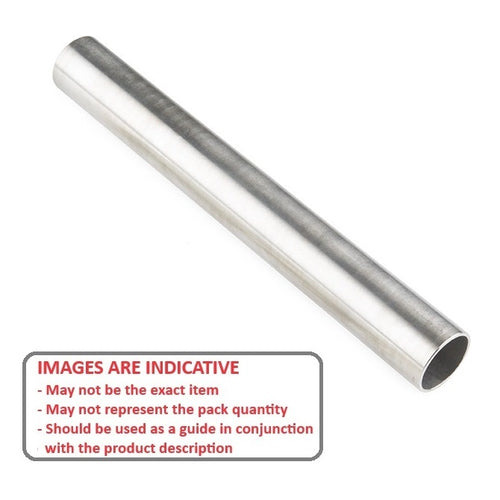

Tube - Round - Stainless SteelStainless Steel Round Tube. Hollow round tubing for general hobby applications.
- Includes K&S Metals range and more
- May be slightly oversized on OD so some reworking might be required before fitting closely mating parts.
- This product is not recommended for use as a bearing shaft.
- We suggest you use items from the category - Shafting - Ground for bearing shaft.
Product Data
- OD (D)
:
4.76
mm
+/- 0.051
(Equiv. 0.187 in.) - ID (d)
3.17
mm
+/- 0.076
(Equiv. 0.125 in.) - Length (L)
304.8
mm
+/- 1.0
(Equiv. 12 in.) - Grade 304
- Material Stainless Steel 303 PV (Similar to A2, 304, 18-8)
Product Compliance and Data
Additional Resources
Cross References
- KSE KS87113
- KSE KSE-7113
- 0T004800330300SS304
- KSE7113
