CBLC-476H-GAL-VR-77 - Datasheet

MBA

Category Information

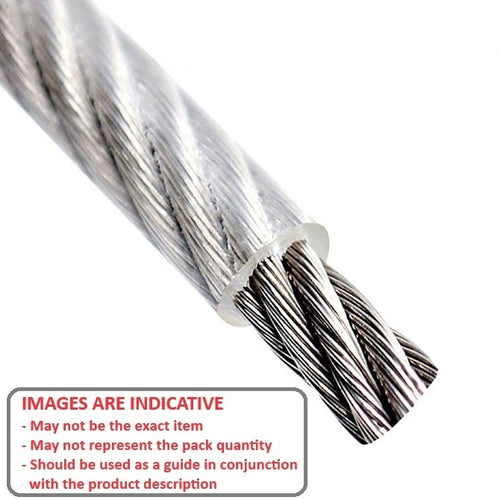

Cable and Accessories - Cable - Miniature - Coated

Coated Miniature Cable Cable and Accessories. Lengths will be supplied continuous to a maximum of 3mtrs (ie, 10 x 300mm supplied as 3mtr length)

  • An expanded range may be available on special order. Please enquire.
  • Recommended that nylon coating is stripped prior to swaging.
  • Sold per length. Multiple quantities will be supplied in a continuous length up to 3mtr maximum.
  • Also called bowden cable.

Product Data

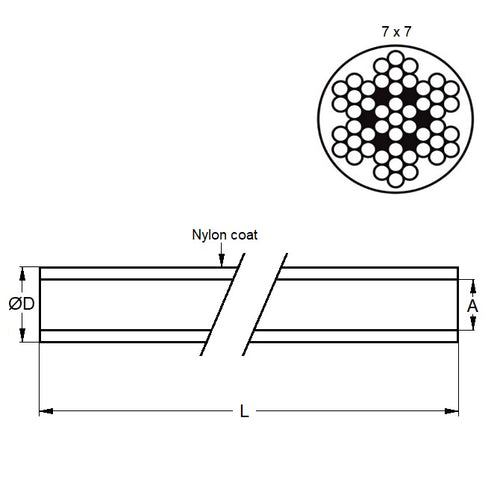

  • Overall Diameter : 4.76 mm
    (Equiv. 0.187 in.)
  • Cable Diameter (A) 3.175 mm
    (Equiv. 0.125 in.)
  • Breaking Strength 771.1 kg
  • Length 30 Mtr Roll
  • Coating Red Vinyl
  • Strand Type 7x7
  • Material Red Vinyl over Galvanized Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • CBL1370
    • CBL-1370
