CBLC-476-GAL-VY-77 - Datasheet
MBA
Category Information
Cable and Accessories - Cable - Miniature - CoatedCoated Miniature Cable Cable and Accessories. Lengths will be supplied continuous to a maximum of 3mtrs (ie, 10 x 300mm supplied as 3mtr length)
- An expanded range may be available on special order. Please enquire.
- Recommended that nylon coating is stripped prior to swaging.
- Sold per length. Multiple quantities will be supplied in a continuous length up to 3mtr maximum.
- Also called bowden cable.
Product Data

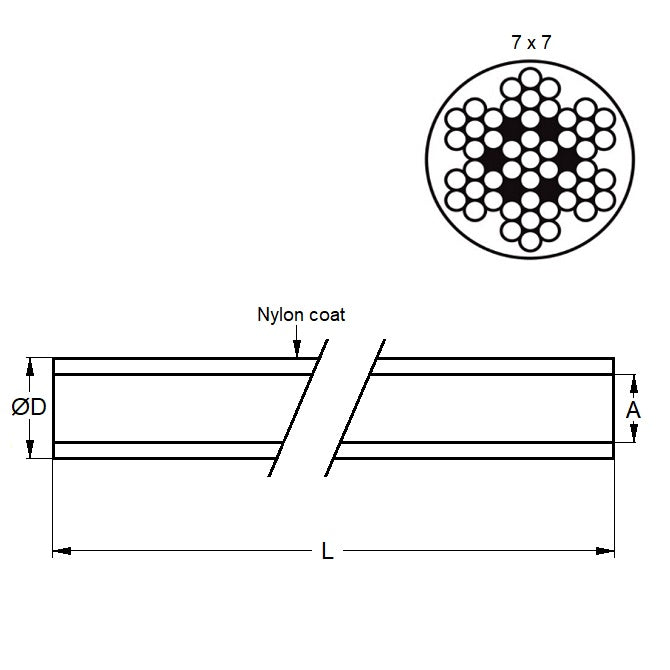

- Overall Diameter
:
4.76
mm
(Equiv. 0.187 in.) - Cable Diameter (A)
2.381
mm
(Equiv. 0.094 in.) - Breaking Strength 417.3 kg
- Length 30 Mtr Roll
- Coating Yellow Vinyl
- Strand Type 7x7
- Material Yellow Vinyl over Galvanized Steel
Product Compliance and Data
Additional Resources
Cross References
- 8923T164-YELLOW
- 8923T164YELLOW
- CBL1350
- CBL-1350
