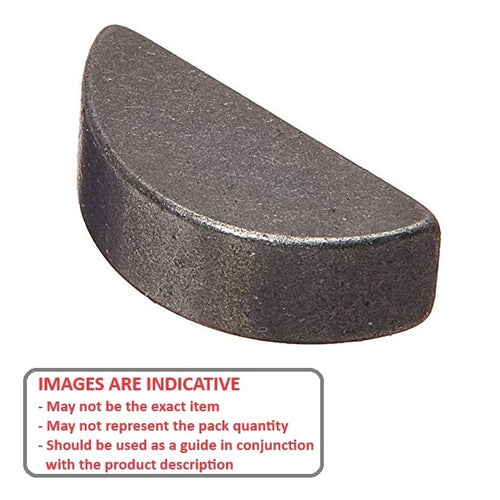

KW-048-191-C - Datasheet

ExaktKey

Product Data

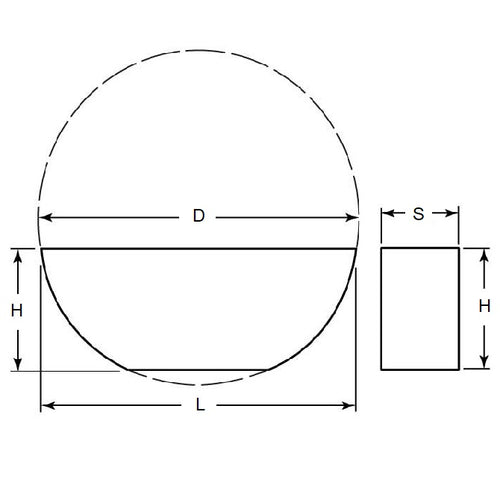

• Thickness (S) : 4.76 mm _{+/- 0.025}
  (Equiv. 0.187 in.)
• Basis Diameter (D) 19.05 mm _{+/- 0.250}
  (Equiv. 0.75 in.)
• Approx. Height (H) 8.0 mm
  (Equiv. 0.315 in.)
• Approx. Length (L) 18.67 mm
• Finish Plain
• Hardness HRB 80
• Material Carbon Steel C45

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Keysteel Catalogue PDF


• Measuring Small Parts
• Metalworking Resource Guide

Cross References

• ANSI 606
• WOODRUFF 606
• WOODRUFF 606 Woodruff
• WOODRUFF 9 Woodruff
• 98481A125
• NoCor WKA-009
• NoCor WKC-009
• WKC009
• WKA009
