Miniature Bearings Australia
BL-00476-ACR - Datasheet
MBA
Category Information

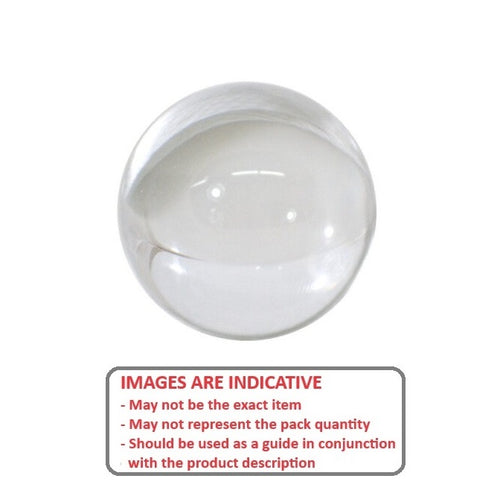

Balls - Plastic - AcrylicAcrylic Plastic Balls. Resistance to weather and sunlight. Good abrasion resistance.
- Plastic ball grades are not the same as those for precision balls
- Acrylic (Methyl Methacrylate).
- Diametrical tolerances typically + / - 0.08 or 0.13 mm depending on size.
- Ground and Polished.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Diameter (D)
:
4.76
mm
+/- 0.051
(Equiv. 0.187 in.) - Material Acrylic
- Precision Grade 3
- Hardness 132 Rockwell R
- Properties Resistance to weather and sunlight
- Colour Water clear transparent
- Specific Gravity 1.19
- Material Acrylic
Product Compliance and Data
Additional Resources
Cross References
- ALTPART 1383K44
- Small Parts BL-3
