SCT0476-038-P-PH-CZ - Datasheet
MBA
Category Information

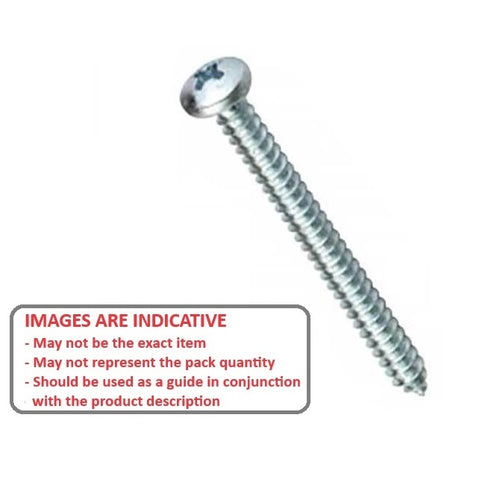

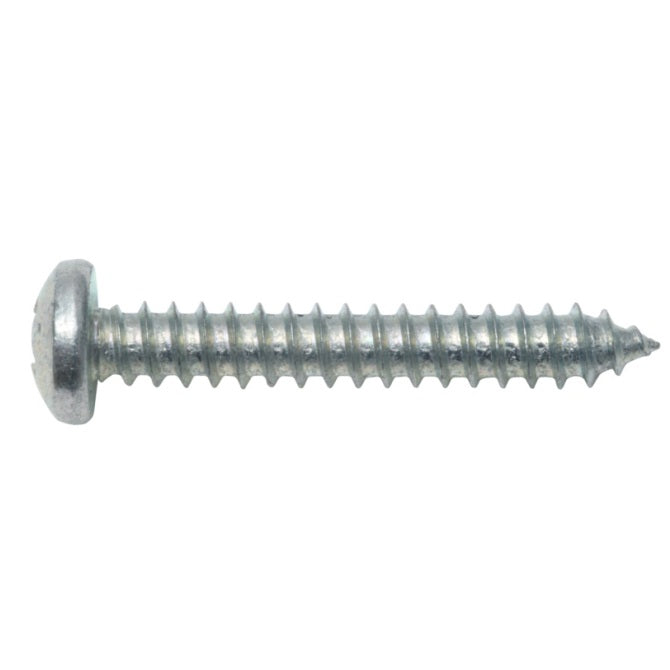

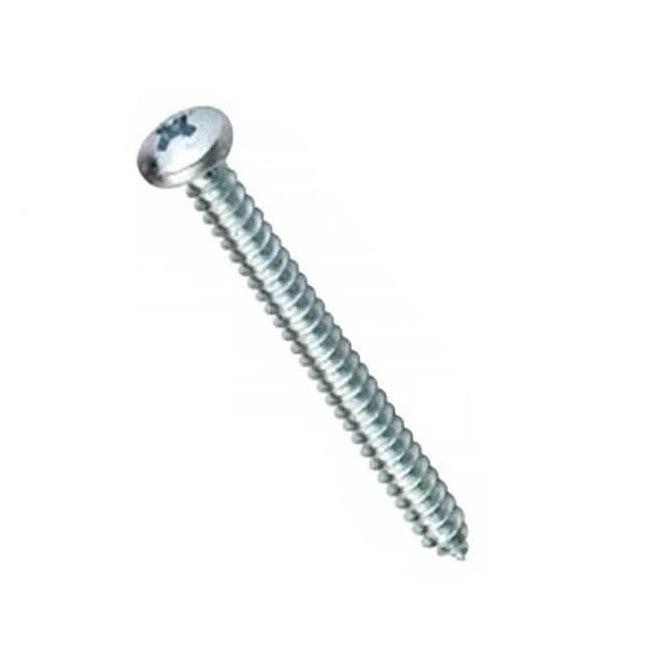

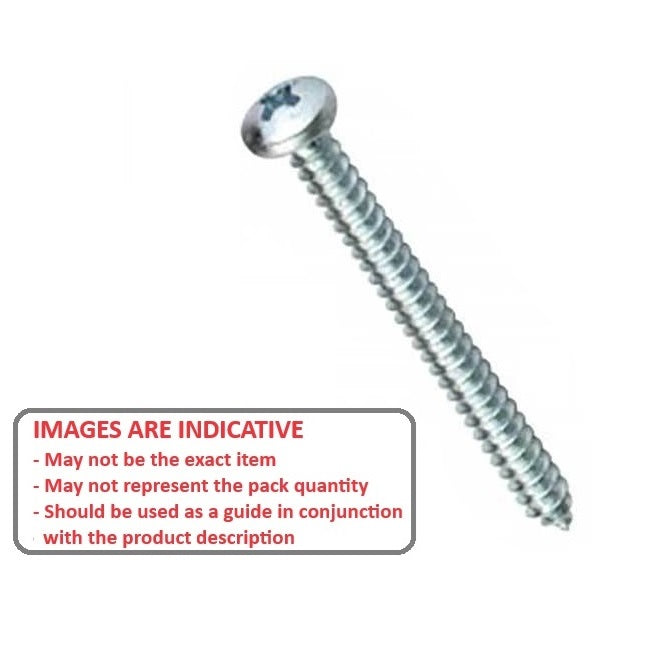

Screws - Self Tapping - Pan Head - Zinc PlatedZinc Plated Pan Head Self Tapping Screws. Type AB Steel Self Tapping Screws.

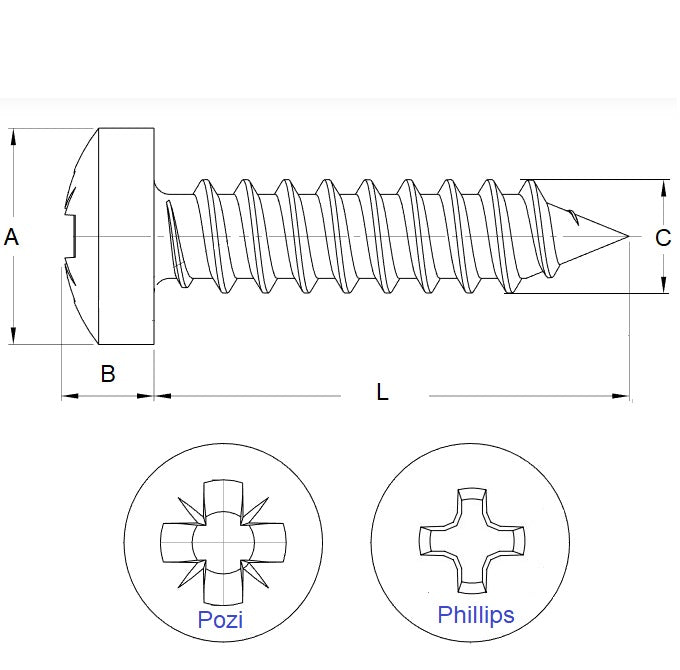

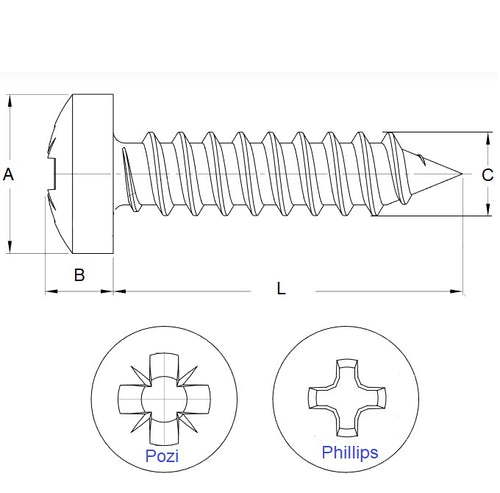

- Length is from the tip of the screw to the base of the head. Ie, does not include the head.
Product Data
- Approx Diameter
:
4.76
mm
+/- 0.05
(Equiv. 0.187 in.) - Thread Length (L)
38.1
mm
(Equiv. 1.5 in.) - Gauge 10 or 3/16 + / - 0.25
- Type Pan / Philips
- Material Zinc Plated Steel
