SFWR166UF-MC34-GR5-R-L23 - Datasheet
Myonic
Category Information

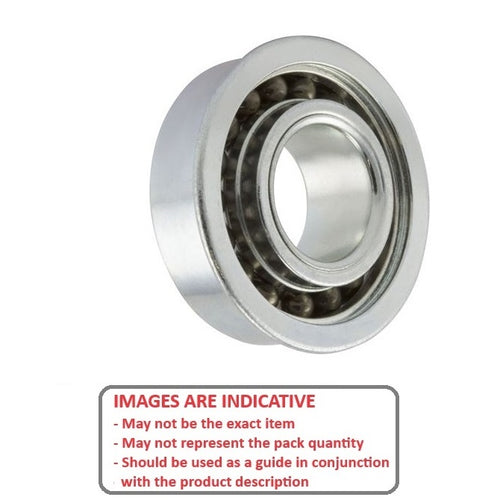

Bearings - Single Row Ball - Flanged - High Precision - Extended InnerExtended Inner High Precision Flanged Single Row Ball Bearings. Stainless Steel Bearings with Flanges - Abec 5 and Abec 7. Single row radial ball bearings with flanges and extended inner rings (wide inner rings).
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
- If the size you require is not available, you might consider using a standard bearing with shim washers.
- True high precision bearings are not recommended for skates or fishing reels.
- High precision bearings are used in accurately balanced application such as spindles, gyros and medical equipment.
- If your application is not of a precision nature, standard bearings may be more suitable (and less expensive).
Product Data

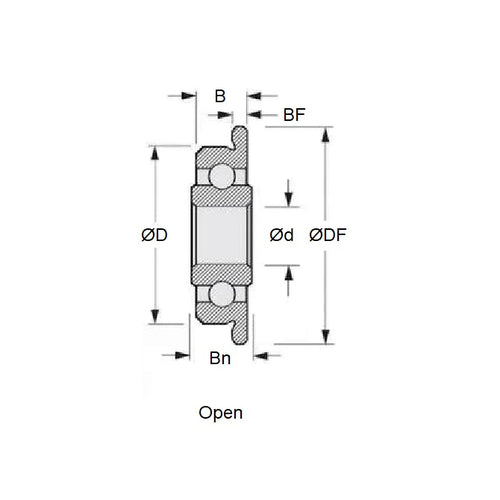

- ID (d)
:
4.763
mm
+ 0.000 / - 0.005
(Equiv. 0.188 in.) - OD (D)
9.525
mm
+ 0.000 / - 0.005
(Equiv. 0.375 in.) - Width (B)
3.175
mm
+ 0.000 / - 0.040
(Equiv. 0.125 in.) - Inner Ring Width (Bn) 3.969 mm
- Flange Diameter (DF) 10.719 mm
- Flange Width (BF) 0.584 mm
- Precision Grade Abec 5
- Closure Type Open
- Bearing Type Radial Flanged with Extended Inner
- Lubricant Windsorlube L245X - L23 Oil
- Material Stainless Steel AISI 440C
- Lubrication Type Oil
- Lubrication Name L23 Windsorlube L245X
- Basic Part FWR166UF
- Limiting Speed 72000
- Cage Type Ribbon
- Static Load Rating KGf 28
- Dynamic Load Rating KGf 72
- Radii 0.10 mm
- Inner Shoulder (UI) 5.950mm
- Outer Shoulder (UO) 8.200 mm
- Number of Balls 8
- Clearance MC34 (5 to 10)
- Precision Grade Abec 5
- Closure Type Open
- Max Temperature 170 Deg. C
