4R-0048-0914-KS3O - Datasheet
ExaktKey
Category Information

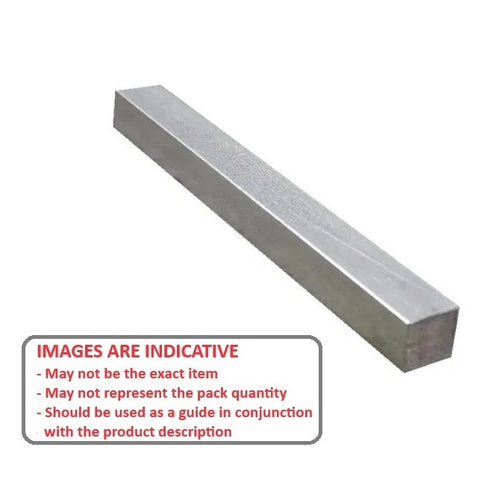

Keysteel Lengths - Square - Stainless SteelStainless Steel Square Keysteel Lengths. 303, 304 and 316 grade key steel. Square stainless steel bar that can be used for keysteel or for small construction projects.
- An expanded range may be available on special order. Please enquire.
- Use oversized for replacing keys where the keyway may be slightly worn - standard aftermarket keysteel
- Use undersized for manufacturing and new applications where the keyway tolerances can be controlled
Product Data

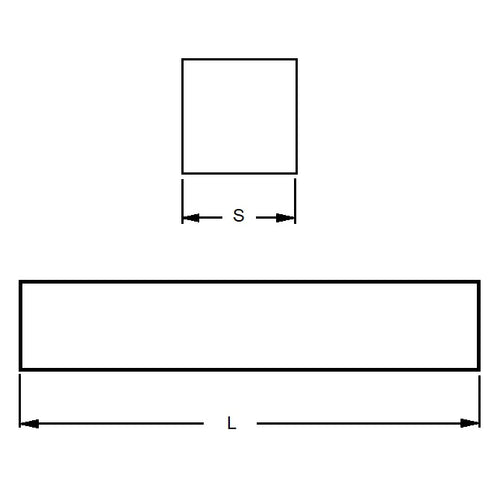

- Width (s1)
:
4.763
mm
+ 0.076 / - 0.00
(Equiv. 0.188 in.) - Height (s2)
4.763
mm
+ 0.076 / - 0.00
(Equiv. 0.188 in.) - Length (L)
914
mm
+/- 3.2
(Equiv. 35.984 in.) - Tolerance Type Oversized
- Blue End Colour Code
- Material Stainless Steel 300 Series
Product Compliance and Data
Additional Resources
Cross References
- NoCor 7501870187-36
- 750187018736
