4R-0048-1800-KS3U - Datasheet
ExaktKey
Category Information

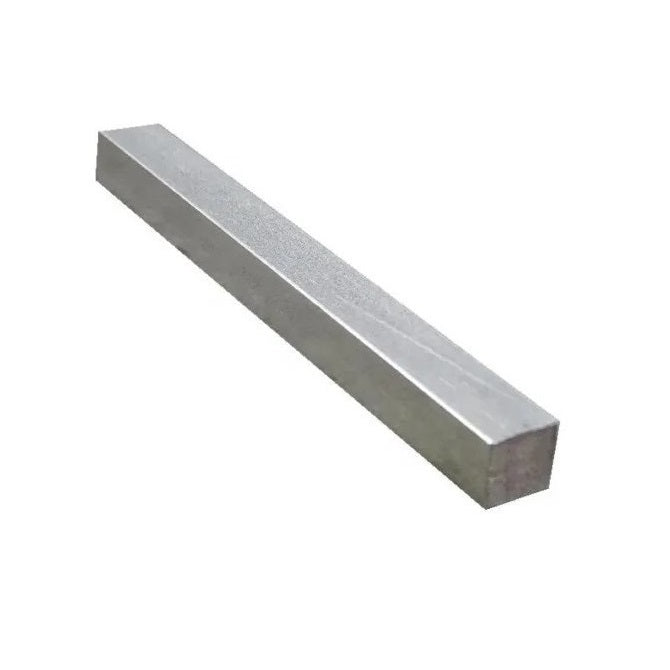

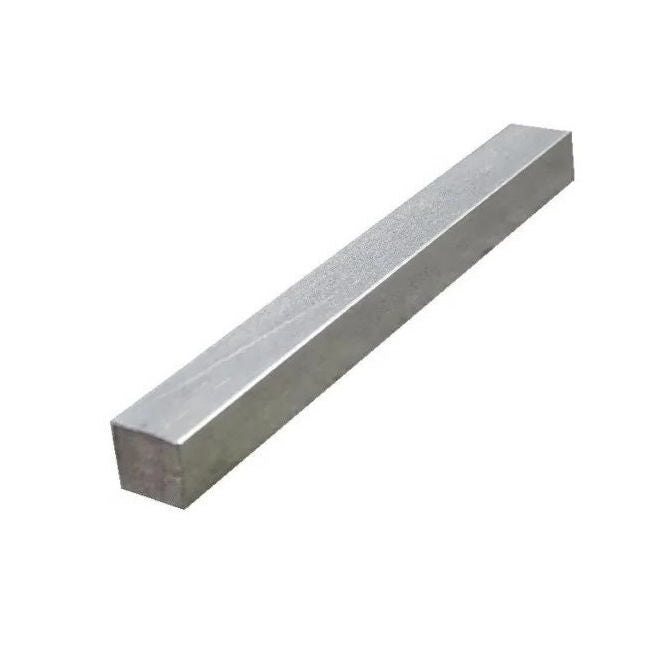

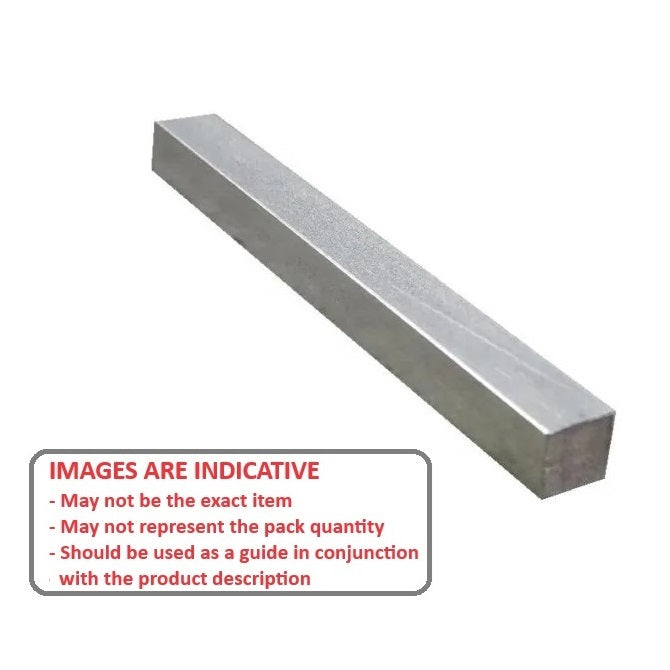

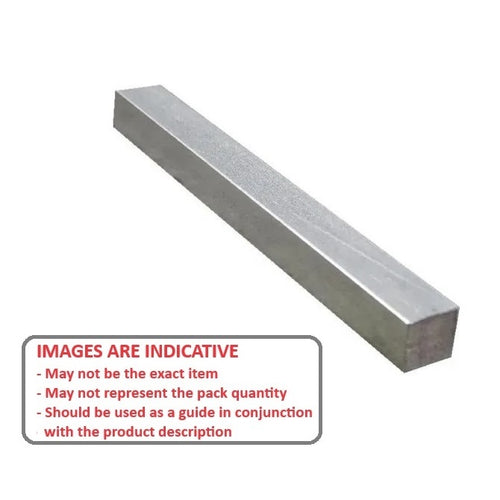

Keysteel Lengths - Square - Stainless SteelStainless Steel Square Keysteel Lengths. 303, 304 and 316 grade key steel. Square stainless steel bar that can be used for keysteel or for small construction projects.
- An expanded range may be available on special order. Please enquire.
- Use oversized for replacing keys where the keyway may be slightly worn - standard aftermarket keysteel
- Use undersized for manufacturing and new applications where the keyway tolerances can be controlled
Product Data
- Width (s1)
:
4.763
mm
+ 0 / - 0.051
(Equiv. 0.188 in.) - Height (s2)
4.763
mm
+ 0 / - 0.051
(Equiv. 0.188 in.) - Length (L)
1800
mm
+/- 3.2
(Equiv. 70.866 in.) - Tolerance Type Standard Undersized
- Red End Colour Code
- Material Stainless Steel 303 (Similar to A2, 304, 18-8)
Product Compliance and Data
Additional Resources
Cross References
- NoCor 7001870187-72
- 700187018772
