2R-0048-0127-0300-KS3U - Datasheet
ExaktKey
Category Information

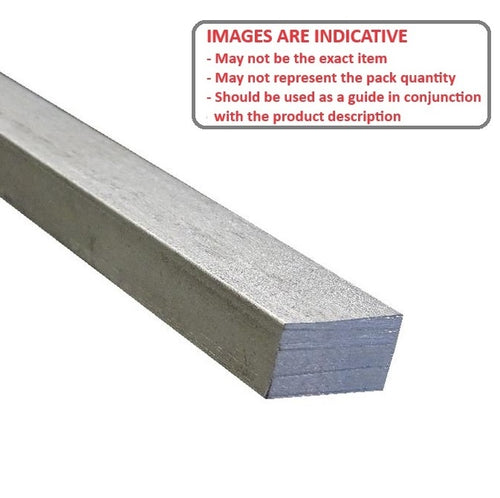

Keysteel Lengths - Rectangular - Stainless SteelStainless Steel Rectangular Keysteel Lengths. 303, 304 and 316 key steel. Rectangular stainless steel bar that can be used for keysteel or for small construction projects.
- An expanded range may be available on special order. Please enquire.
- Use oversized for replacing keys where the keyway may be slightly worn - standard aftermarket keysteel
- Use undersized for manufacturing and new applications where the keyway tolerances can be controlled
Product Data
- Width (s1)
:
4.763
mm
+ 0 / - 0.051
(Equiv. 0.188 in.) - Height (s2)
12.700
mm
+ 0 / - 0.051
(Equiv. 0.5 in.) - Length (L)
300
mm
+ 8.0 / - 3.2
(Equiv. 11.811 in.) - Tolerance Type Standard Undersized
- Red End Colour Code
- Material Stainless Steel 303 (Similar to A2, 304, 18-8)
Product Compliance and Data
Additional Resources
Cross References
- NoCor 7001870500-12
- 92530A118
- 700187050012
