COL-00476-011-06-CZ - Datasheet
MBA
Category Information

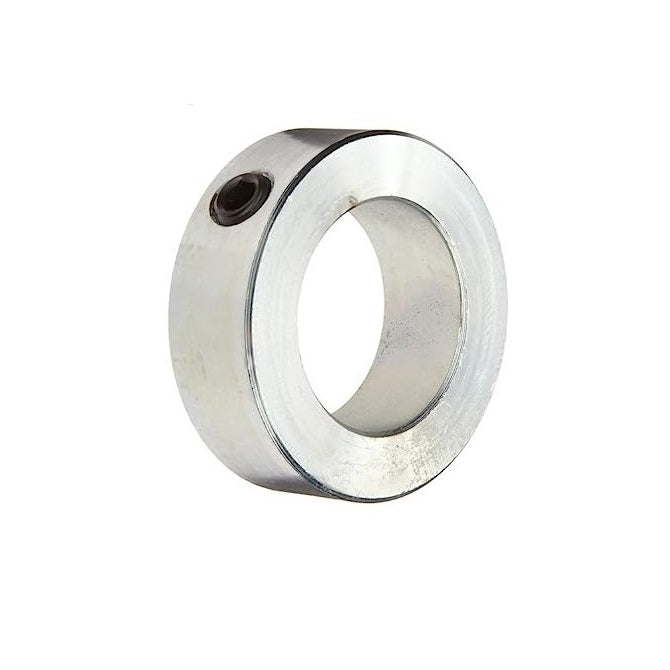

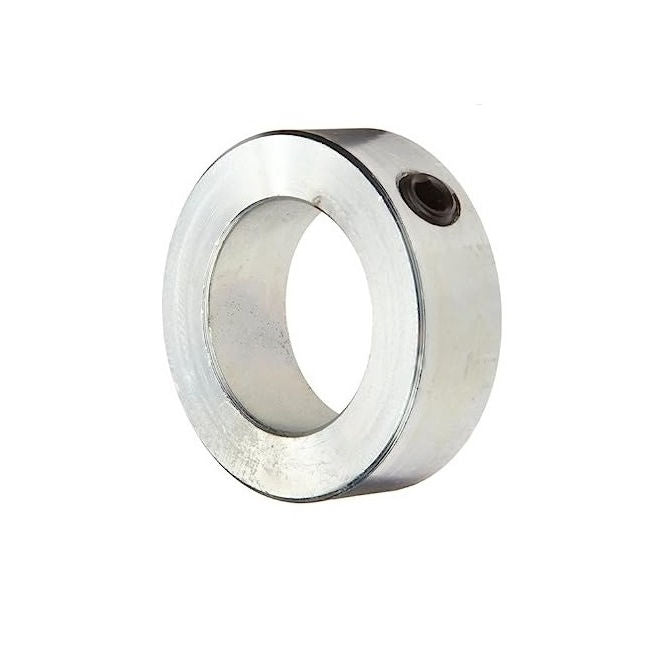

Collars - Shaft - Standard - SteelSteel Standard Shaft Collars. Includes miniature precision types. Carbon steel.
- Simple, ring-shaped component, typically made of metal or plastic, that fastens around a round shaft to hold other parts in place or to act as a mechanical stop.
- Essential in power transmission applications for securing items like bearings, sprockets, and gear assemblies.
- Static torque and axial load are for reference only using steel cup point grub screw on soft steel shaft
Product Data
- Suitable Shaft Size (d)
:
4.763
mm
+ 0.051 / - 0.000
(Equiv. 0.188 in.) - Outside Diameter (D) 11.10 mm
- Overall Width (S) 6.4 mm
- Screw Size 8-32 x 1/8
- Material Steel or Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- 6432K19
- Huyett® SC-0187-ZC
- NoCor® SC-0187-ZC
- Small Parts SC-3
- SC0187ZC
