COL-00476-011-06-CS - Datasheet
MBA
Category Information

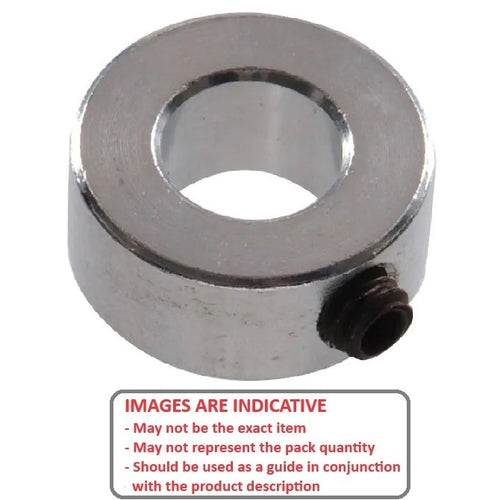

Collars - Shaft - Standard - SteelSteel Standard Shaft Collars. Includes miniature precision types. Carbon steel.
- Simple, ring-shaped component, typically made of metal or plastic, that fastens around a round shaft to hold other parts in place or to act as a mechanical stop.
- Essential in power transmission applications for securing items like bearings, sprockets, and gear assemblies.
- Static torque and axial load are for reference only using steel cup point grub screw on soft steel shaft
Product Data
- Suitable Shaft Size (d)
:
4.763
mm
+ 0.051 / - 0.000
(Equiv. 0.188 in.) - Outside Diameter (D) 11.10 mm
- Overall Width (S) 6.4 mm
- Screw Size 8-32 x 1/8
- Collar Style Plain Collar
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- 9414T5
- A7C2-11406
- A7C211406
