SLH-0476-0953-03810 - Datasheet
MBA
Category Information

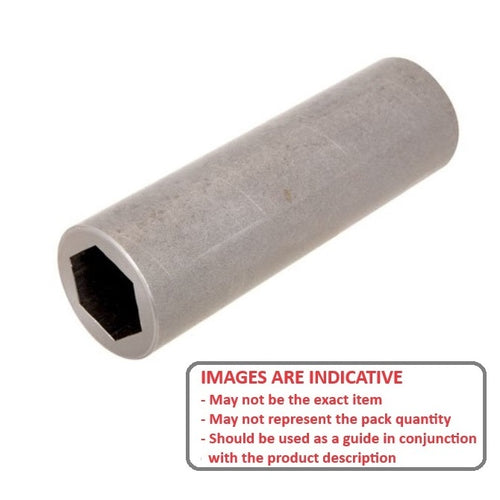

Sleeves - Hex Hole - Carbon SteelCarbon Steel Hex Hole Sleeves. Carefully turned to provide 0.076mm (0.003in) concentricity ID to OD. Round OD with with a uniform hex hole broached from one end to the other.
Product Data

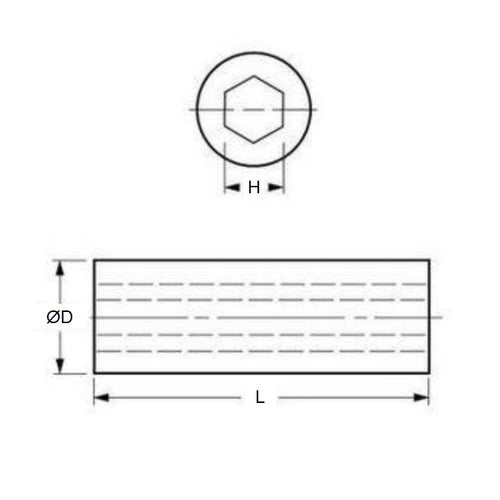

- Nominal Hex Size
:
4.763
mm
(Equiv. 0.188 in.) - Outside Diameter (OD)
9.525
mm
(Equiv. 0.375 in.) - Length (L)
38.100
mm
(Equiv. 1.5 in.) - Actual Hex Size (H) 4.826 mm
- Material Carbon Steel 11L17
Product Compliance and Data
Additional Resources
Cross References
- Small Parts 10000120
- HHS4
- HHS-4
- A7C2003
- A7C20-03
