VD-6RS - Datasheet

MBA

Category Information

Plungers - Ball Buttons

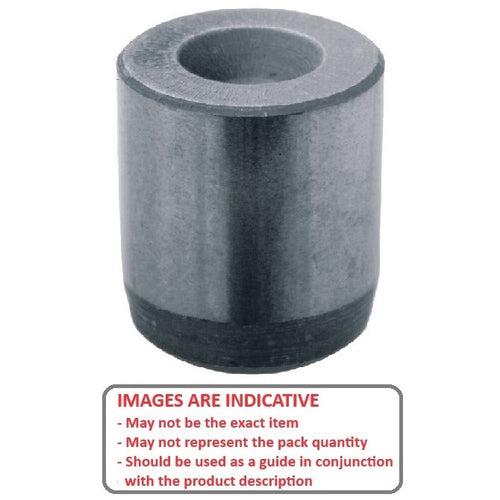

Ball Buttons Plungers. Also known as striker bushings or ball plunger detents. Use with ball or bolt spring plungers for a hard wearing contact area.

  • Burnished ground hardened steel.

Product Data

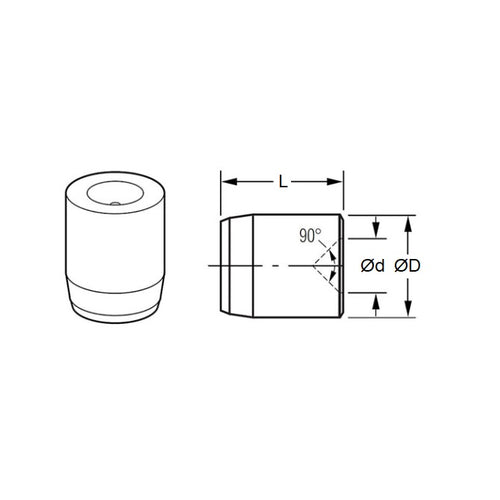

  • Suitable Ball Diameter (d) : 4.763 mm
    (Equiv. 0.188 in.)
  • Diameter (D) 8.341 mm
    (Equiv. 0.328 in.)
  • Length (L) 9.525 mm
    (Equiv. 0.375 in.)
  • Hole Diameter (d1) 4.166
  • Material Stainless Steel AISI 440C
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • 33545A25
