SLQ-0476-0794-03810 - Datasheet
MBA
Category Information

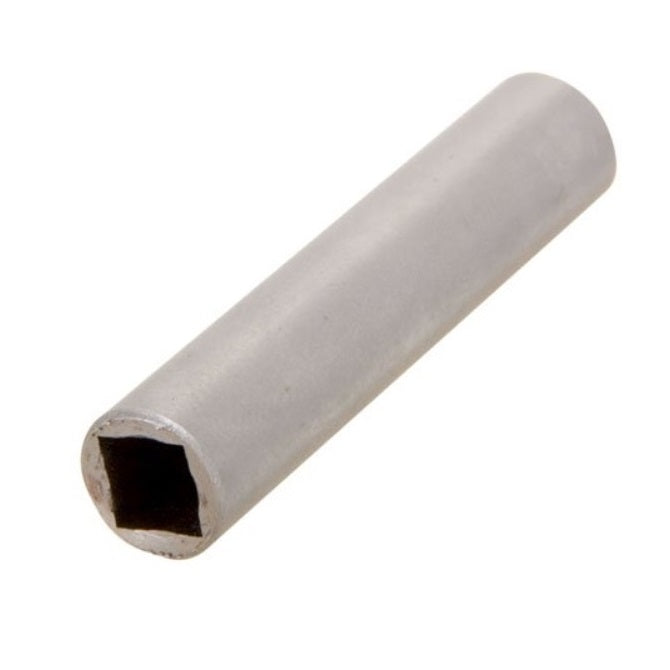

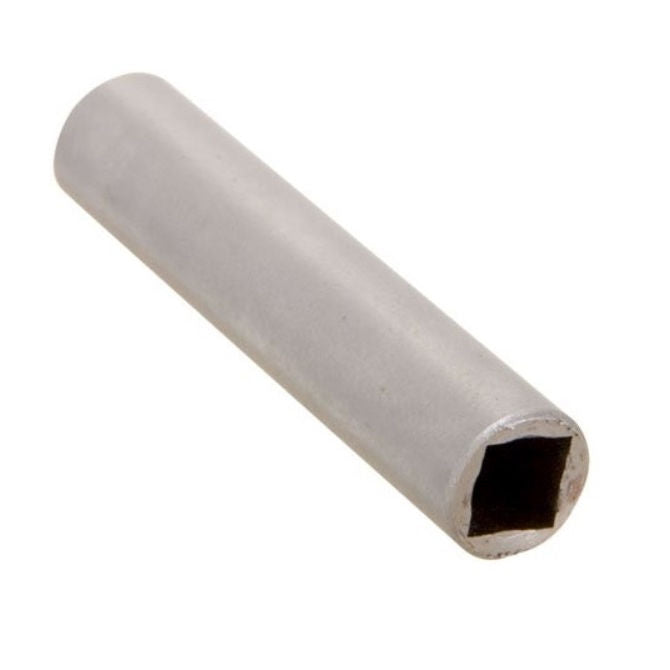

Sleeves - Square Hole - Plain - Carbon SteelCarbon Steel Plain Square Hole Sleeves. Square and concentric to 0.076mm (0.003in).
- Precisely machined, round outer surface and a uniform, precisely square-shaped hole completely through its center.
Product Data
- Nominal Square Size
:
4.763
mm
+/- 0.0254
(Equiv. 0.188 in.) - Outside Diameter (C)
7.938
mm
(Equiv. 0.313 in.) - Length (B)
38.100
mm
(Equiv. 1.5 in.) - Actual Square Size (A) 4.864 mm
- Material Carbon Steel 11L17
Product Compliance and Data
Additional Resources
Cross References
- SHSP18
- SHS-P18
- A7C19P018
- A7C19-P018
