P-R3-PKS6 - Datasheet

KMS

Category Information

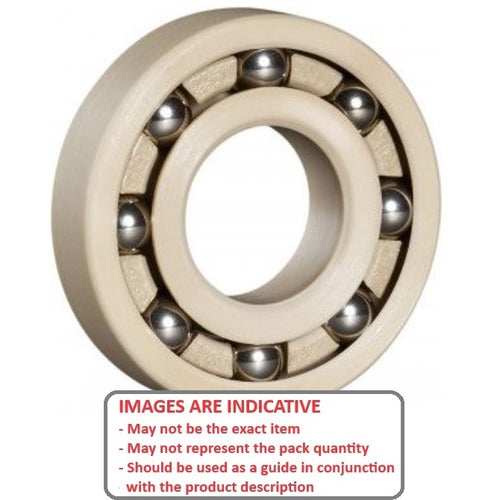

Bearings - Plastic - PEEK - 316 Stainless Balls

316 Stainless Balls PEEK Plastic Bearings. PEEK (Polyetheretherketone), is a high temperature, high-performance engineering polymer.

  • Plastic bearings, also known as polymer bearings, are bearings made from various types of plastics or polymer materials. Used in a wide range of applications across different industries where traditional metal bearings may not be suitable.
  • These bearings offer unique advantages such as corrosion resistance, low friction, lightweight construction, and non-magnetic properties. Uses include Food and Beverage Industry, Medical and Laboratory Equipment, Chemical Industry,HVAC Systems.
  • Plastic ball bearings do not use the same precision standards as those for precision ball bearings. An expanded range may be available on special order. Please enquire.
  • Races made from PEEK - Balls made from Ground Glass - Cages from PEEK
  • PEEK offers chemical and water resistance similar to PPS (Polyphenylene Sulfide) but can operate at higher temperatures
  • PEEK can be used continuously to 338 Deg F (170 Deg C) and in hot water or steam without permanent loss in physical properties.
  • Wear, Chemical & Hydrolysis Resistant. Exceptional performance over a wide range of temperatures and extreme conditions.
  • Low Smoke and Toxic Gas Emission.

Product Data

  • ID (d) : 4.763 mm + 0.076 / - 0.000
    (Equiv. 0.188 in.)
  • OD (D) 12.700 mm + 0.000 / - 0.102
    (Equiv. 0.5 in.)
  • Width (B) 3.969 mm + 0.127 / - 0.000
    (Equiv. 0.156 in.)
  • Max RPM in Air 3800
  • Notes Unlubricated
  • Type Radial
  • Dynamic Load Rating 9.3 Kg
  • Static Load Rating 6.1 Kg
  • Material PEEK with Stainless Steel 316 Balls
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • KMS PKR3-6
  • PKR36
  • PR3PS6
